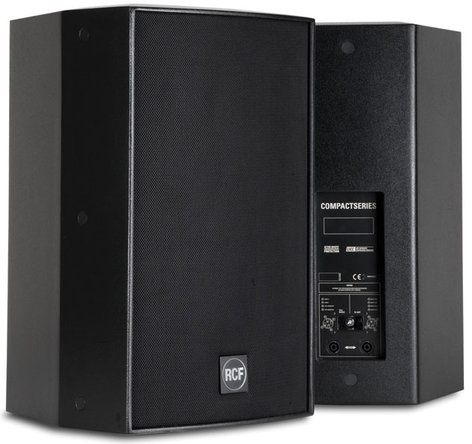

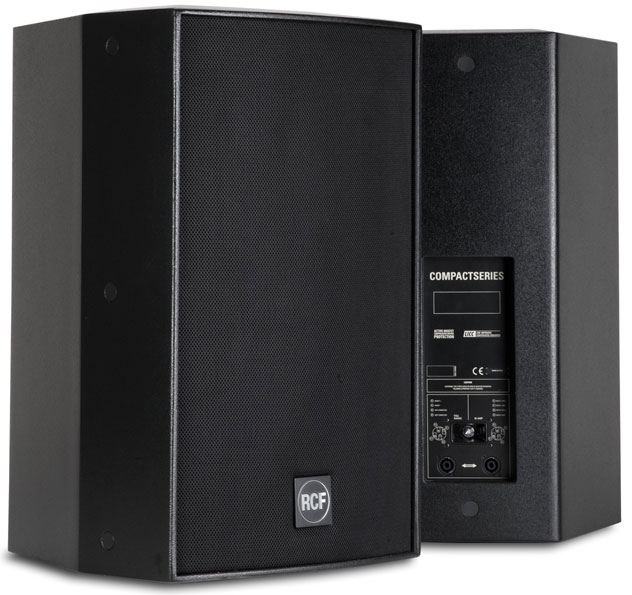

RCF C5212-66
C Series 2-Way Passive Speaker with 12" LF, 1" HF, 60° x 60° Horn

OUR PART #:  C5212-66

RCF's C5212-66 is a full range extremely narrow dispersion two-way loudspeaker system for medium throw applications.
Learn More
Our Price: $1,680.00
List Price: $2,369.00
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RCF C5212-66
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RCF's C5212-66 is a full range extremely narrow dispersion two-way loudspeaker system for medium throw applications.

The high-frequency section is a constant directivity horn loaded to a 2" compression driver with a 2.5" diaphragm assembly for smooth, wide dispersion.  The 60° x 60° horn design offers higher sensitivity for longer distance applications.  The low-frequency transducer is a 12" woofer with a 3" voice coil.  The crossover is easily bypassed for bi-amp via a recessed changeover switch.

Features:

  • 60° x 60° CMD (Coverage Matching Design) constant directivity horn
  • 2" compression driver with 2.5" diaphragm assembly
  • 12" woofer with 3" voice coil
  • Dual-function design: built in passive crossover or external bi-amp
  • Rotatable Horn System for horizontal cabinet mounting applications
  • HF driver AMCDP (Active Mosfet Compression Driver Protection)
  • LICC (Low Impedance Compensated Crossover) network

Applications:

  • Permanent installations
  • Main Reinforcement in small and medium spaces
  • High-Level AV Playback
  • Cluster configurations
  • Live Music Reinforcement

Acoustical Specifications:

  • Frequency Response -10 dB: 54 Hz ÷ 20 kHz
  • Max SPL @ 1m: 132 dB
  • Horizontal coverage angle: 60°
  • Vertical coverage angle: 60°
  • Directivity index; Q: 13
  • System Sensitivity: 99 dB
  • Nominal Impedance: 8 O
  • Power Handling: 500 W
  • Peak Power Handling: 2000 W
  • Recommended Amplifier: 1000 W
  • Protections: Dynamic
  • Crossover frequencies: 1200 Hz

Transducers:

  • Compression Driver: 2"HF driver, 2.5" voice coil
  • Nominal Impedance: 8 O
  • Input Power Rating: 100 W AES
  • Sensitivity: 111 dB
  • Woofer: 12" woofer, 3" voice coil
  • Nominal Impedance: 8 O
  • Input Power Rating: 400 W AES
  • Sensitivity: 98 dB

Input Section:

  • Input connector: Speakon NL4 - Full range or Bi-Amp
  • Output connector: Speakon NL4

Cabinet:

  • Cabinet Material: 15 mm birch plywood construction
  • Hardware: 14 x M10 inserts
  • Pole Mount/Cap: 1 top, 1 bottom
  • Grille: custom perforated steel grille, epoxy powder coated, covered withpolyurethane perforated cloth
  • Color: Black

Physical Specifications:

  • Dimensions: 24.8" H x 14.17" W x 15.35" D (630 x 360 x 390 mm)
  • Net Weight: 63.93 lbs (29 kg)
Fly Bracket for Compact Series C5xxx cabinets
RCF AC NC-FB2 Fly Bracket for Compact Series C5xxx cabinets
The RCF AC NC-FB2 is a fly bracket with holes that allow the suspension of RCF's 'Compact' series loudspeakers with M10 D-shackles and chains (both sold separately).The AC NC-FB2 is compatible with RCF's C 5212-64, C 5212-66, C ...
