Product Overview

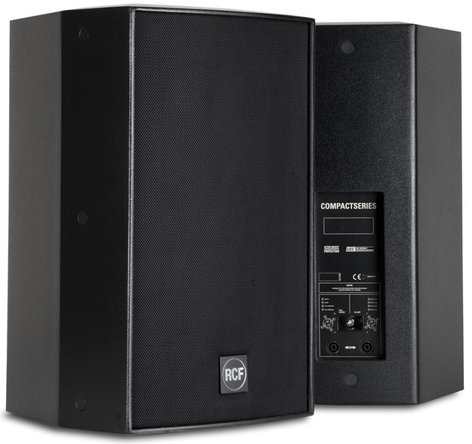

RCF's C5212-99 is a full range extremely narrow dispersion two-way loudspeaker system for medium throw applications.
The high-frequency section is a constant directivity horn loaded to a 2" compression driver with a 2.5" diaphragm assembly for smooth, wide dispersion. The 60° x 40° horn design offers higher sensitivity for longer distance applications. The low-frequency transducer is a 12" woofer with a 3" voice coil. The crossover is easily bypassed for bi-amp via a recessed changeover switch.
Applications:
- Permanent installations
- Main Reinforcement in small and medium spaces
- High-Level AV Playback
- Cluster configurations
- Live Music Reinforcement
Features:
- 90° x 90° CMD (Coverage Matching Design) constant directivity horn
- 2" compression driver with 2.5" diaphragm assembly
- 12" woofer with 3" voice coil
- Dual-function design: built in passive crossover or external bi-amp
- Rotatable Horn System for horizontal cabinet mounting applications
- HF driver AMCDP (Active Mosfet Compression Driver Protection)
- LICC (Low Impedance Compensated Crossover) network
Specifications:
- Acoustical:
- Frequency Response -10 dB: 54 Hz ÷ 20 kHz
- Max SPL @ 1m: 132 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 90°
- Directivity index; Q: 13
- System Sensitivity: 99 dB
- Nominal Impedance: 8 O
- Power Handling: 500 W
- Peak Power Handling: 2000 W
- Recommended Amplifier: 1000 W
- Protections: Dynamic
- Crossover frequencies: 1200 Hz
- Transducers:
- Compression Driver: 2"HF driver, 2.5" voice coil
- Nominal Impedance: 8 O
- Input Power Rating: 100 W AES
- Sensitivity: 111 dB
- Woofer: 12" woofer, 3" voice coil
- Nominal Impedance: 8 O
- Input Power Rating: 400 W AES
- Sensitivity: 98 dB
- Input Section:
- Input connector: Speakon NL4 - Full range or Bi-Amp
- Output connector: Speakon NL4
- Cabinet:
- Cabinet Material: 15 mm birch plywood construction
- Hardware: 14 x M10 inserts
- Pole Mount/Cap: 1 top, 1 bottom
- Grille: custom perforated steel grille, epoxy powder coated, covered withpolyurethane perforated cloth
- Color: Black
- Physical:
- Dimensions: 24.8" H x 14.17" W x 15.35" D (630 x 360 x 390 mm)
- Net Weight: 63.93 lbs (29 kg)
