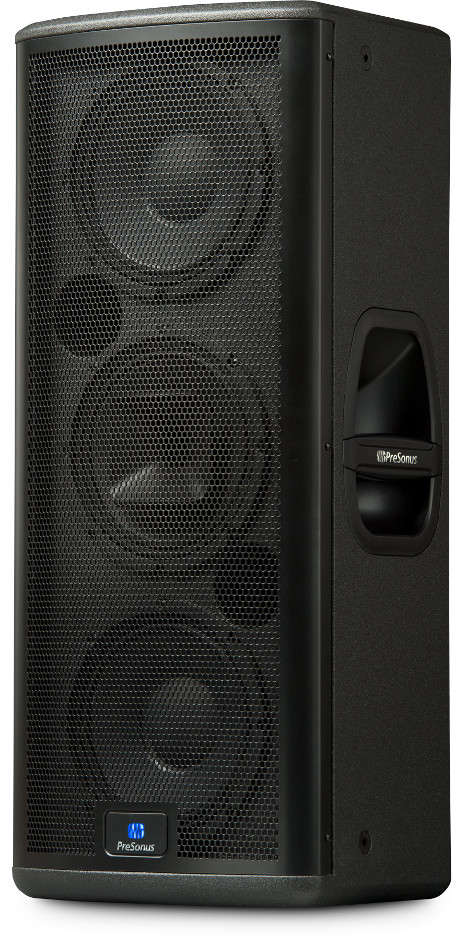

PreSonus StudioLive 328AI 8" 3-Way Active Speaker 2000W

OUR PART #: STUDIO-LIVE-32-8-AI

Copied to clipboard
PreSonus StudioLive 328AI 8" 3-Way Active Speaker 2000W Image 1
PreSonus StudioLive 328AI 8" 3-Way Active Speaker 2000W Image 2
PreSonus StudioLive 328AI 8" 3-Way Active Speaker 2000W Image 3
4AJm0Rp09ok?rel=0
2 Videos
PreSonus StudioLive 328AI 8" 3-Way Active Speaker 2000W
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

PreSonus' StudioLive™ AI-series Active Integration Loudspeakers are the first active loudspeakers that deliver studio-monitor accuracy onstage and are equipped with complete wireless or wired remote control and monitoring using an iPad® or laptop.

All StudioLive AI-series speakers incorporate Fulcrum Acoustics' TQ™ Temporal Equalization algorithms. TQ employs multiple, fully addressable Finite Impulse Response (FIR) filters to eliminate horn reflections and to correct linear time and amplitude anomalies. Collaborating with Fulcrum Acoustics' co-founder, Dave Gunness, PreSonus software designers incorporated custom TQ algorithms with dynamics processing, FFT tools, and performance monitoring into the onboard DSP—quite possibly the most powerful suite of tools ever available in a loudspeaker system. The result is a PA system with remarkably clear, coherent, studio-quality sound: Studio…Live!

Another key component of the StudioLive AI's distinctive design is its use of Active Integration technology. Active Integration combines wireless and wired networking and communications with the aforementioned powerful DSP to create a unified working environment.

All StudioLive AI-series loudspeakers include a USB Wi-Fi module to connect to SL Room Control software over a wireless network. SL Room Control is an impressive system-configuration application for Mac OS X®, Windows®, and iPad that provides both individual and grouped speaker control and includes a 31-band graphic EQ and an 8-band parametric EQ, muting, soloing, and level control, in addition to performance monitoring (over temperature, click detection, and excursions). A network-setup wizard is also included to quickly connect each speaker to your wireless network via the optional Dante card (separate purchase).

Full-range AI-series loudspeakers are available in three configurations. Each compact, powered, 3-way loudspeaker relies on a custom-designed, 8" coaxial speaker with a 1.75" titanium compression driver to reproduce the mid and high frequencies. The triamplified, Class D power amplifiers in each model deliver an astonishing combined 2,000 watts of power.

Featuring dual 8-inch ferrite speakers for low-frequency reproduction, the StudioLive 328AI delivers full-range, high-powered performance, yet is streamlined and compact— just right for the club that needs a compact PA with the frequency range, sound, and power of a large system.

Each full-range system has a combo XLR/TRS line input and an XLR microphone input with an XMAX™ Class A mic preamplifier and 12V phantom power, as well as an XLR audio throughput. The full-range speaker systems are pole-mountable and have two ergonomic side handles, interlocking stacking, and M10 fly points. All enclosures are of lightweight plywood construction. Three operation modes allow the user to choose DSP presets for their application, such as MP3 playback, live performance, or stage monitoring. Users can also create a custom preset using SL Room Control and store it onboard for use later.

Custom accessories for the AI-series speakers include a pull-tested Sub Pole to mount a full-range system atop the 18sAI. An M10 Kit, which contains four M10 eyebolts, lets you fly any full-range model in a permanent installation. A protective covers for the18sAI is also available (sold separately).

PreSonus StudioLive 328AI Features:

  • 8" CoActual™ MF/LF speaker with integrated 1.75" compression driver
  • Dual 8" ferrite LF transducers
  • 133 dB maximum peak SPL
  • 2,000 watts triamped Class D Pascal amplification
  • Universal switch mode power supply with power-factor correction
  • 24-bit floating point, 96 kHz DSP with asymmetric three-way crossover
  • Fulcrum Temporal Equalization™ for uncolored response and exceptionally crisp transient response, coaxial-speaker coherence alignment, and performance contouring
  • Temperature and over-voltage protection
  • Excursion limiting
  • Wireless and wired control over output level, DSP presets, and much more with SL Room Control for iPad, Mac OS X, and Windows
  • Three DSP contours
  • 100 Hz highpass filter
  • XMAX™ mic preamp with 15V phantom power
  • Balanced, combo line input with attenuation
  • Audio mix output
  • Speaker attenuation control
  • USB port for use with included USB
  • Wi-Fi module and disaster recovery
  • Etherconn connection for wired control
  • Comfortable, ergonomic handles
  • Optional Dante networking card
