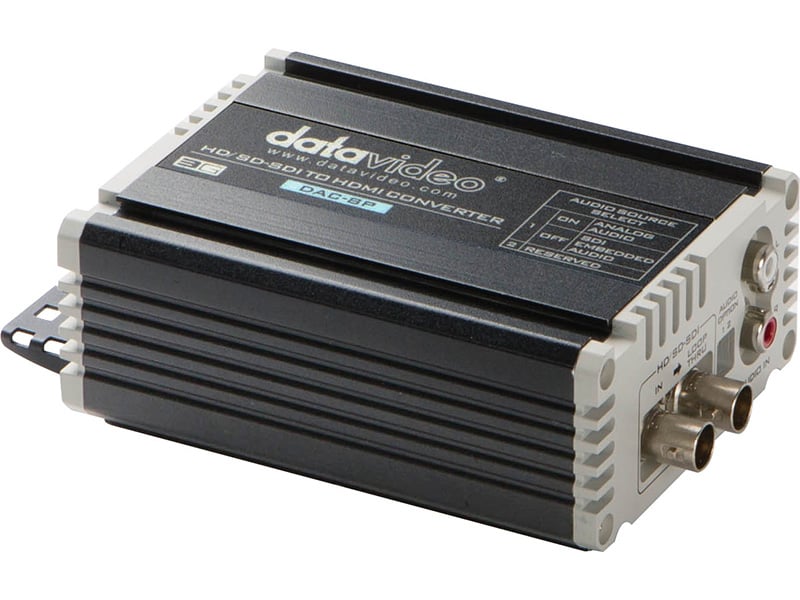

Datavideo Corporation DAC-8P
HD/SD-SDI to HDMI Converter

OUR PART #:  DAC-8P

Datavideo’s DAC-8P Converter is a standalone unit that converts HD/SD-SDI video and audio sources to HDMI.
Learn More
Our Price: $299.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation DAC-8P
Qty:
In Stock

Similar Products

Datavideo’s DAC-8P Converter is a standalone unit that converts HD/SD-SDI video and audio sources to HDMI. With the DAC-8P, you can easily connect to LCD and Plasma televisions as well as video projectors. As an added feature, the DAC-8P can also embed HDMI audio in the SDI stream. The converter signal can be sent with up to a 200 meter link to your digital video display or projector. For distances up to 300’ between the source and the display, SDI coaxial cable is a cost-effective, more durable, and easier to use than in comparison to an HDMI cable.

If used in combination with Datavideo’s DAC-9P, HDMI to HD/SD-SDI converter, users now have an affordable solution for distributing HDMI signal over long distances, without compromising quality.

Includes:

  • DAC-8P Unit
  • Instruction manual
  • Power supply

    Datavideo DAC-8P Features:

    • Durable & Easy to Mount: Rugged housing designfor easy installation in a ceiling mount.
    • Audio Embedded: Audio embedded with HDMI signaloutput
    • NTSC & PAL Compatible: DAC-8P is compatible with both NTSC &PAL.

    Datavideo DAC-8P Specifications:

    • Video Formats:
      • 720×480 Interlace
      • 720×576 Interlace
      • 1280×720 / 50HzProgressive
      • 1280×720 / 59.94Hz Progressive
      • 1280×720 / 60Hz Progressive
      • 1920×1080 /50Hz Interlace
      • 1920×1080 / 59.94Hz Interlace
      • 1920×1080 / 60Hz Interlace
      • 1920x1080p
    • Input: 1x SD/HD-SDI
    • Output:
      • 1 x HDMI
      • 1 x SD/HD-SDI on BNC (bypass)
    • Dimensions:
      • Length: 4 in. / 101.6 mm
      • Width: 3.25 in. / 82.55 mm
      • Height: 1 in. /25.4 mm
      • Weight: 0.5 lbs / 0.2 kg
    • Additional Specs:
      • HDMI Version: 1.4
      • Power (DAC-8): 12V 0.5A
      • Power (DAC-8P):12V 0.5A
      • Audio Connections: 2x unbalanced audio, RCA connector







  • To be the first to review this item, click here.
