Kramer VP-790
8-Input ProScale™ Genlock Presentation Scaler/Switcher

OUR PART #:  VP790

The VP-790 is a high-quality presentation scaler/switcher for RGB component, computer graphics, composite, s-Video, HDMI, DVI and 3G HD-SDI signals.
Learn More
Our Price: $3,596.00
List Price: $4,495.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-790
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The VP-790 is a high-quality presentation scaler/switcher for RGB component, computer graphics, composite, s-Video, HDMI, DVI and 3G HD-SDI signals. The unit takes one of the inputs, scales the video, embeds the audio and outputs the signal to the computer graphics, DVI/HDMI and 3G HD-SDI outputs simultaneously.

Features:

  • HQV® Video Processing - HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with the highest quality de-interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard-definition and high-definition signals.
  • Max. Data Rate - 3Gbps (3G HD-SDI).
  • HDTV Compatible.
  • HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output.
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
  • Video Warping - Uses user-generated screen coordinates to match any linear or non-linear surface.
  • Edge Blending - Facilitates building large images using multiple projectors by feathering the overlapped edges.
  • Video Inputs - 1 HDMI, 1 computer graphics video (15-pin HD), 2 composite video (BNC & RCA), 1 s-Video (4-pin), component video (RGBS) & 1 DVI.
  • Genlock Input - Ideal for use in broadcast video applications.
  • Scaled Outputs - DVI/HDMI, 3G HD-SDI & computer graphics video (15-pin HD).
  • Gaming Mode Option - For minimum latency.
  • Audio Output - S/PDIF de-embedded from HDMI or SDI.
  • Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan.
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast, and brightness.

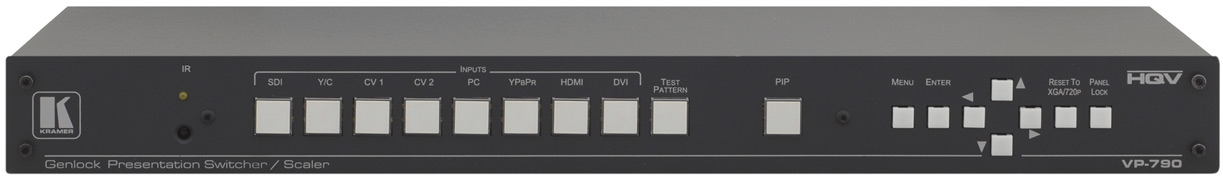

  • Front Panel Controls - OSD, front panel buttons including test pattern, PIP and Reset to XGA/720p.
  • Non-Volatile Memory - Saves final settings.
  • Front Panel Lockout.
  • Flexible Control Options - Front panel with OSD (on-screen display), IR remote, Ethernet and RS-232.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 1U. Rack “ears” included.

Specifications:

  • Inputs:
    -  1 SD/HD/3G HD-SDI on a BNC connector,
    -  1 HDMI connector (HDCP version 1.1),
    -  1 VGA on a 15-pin HD connector,
    -  1 composite video on an RCA connector,
    -  1 composite video on a BNC connector,
    -  1 component video/RGBS on 3/4 RCA connectors,
    -  1 DVI on a DVD-I connector,
    -  1 s-Video on a 4-pin connector.
  • Outputs:
    -  1 SD/HD/3G HD-SDI on a BNC connector,
    -  1 DVI/HDMI on a DVI-D connector (HDCP version 1.1),
    -  1 VGA on a 15-pin HD connector,
    -  1 S/PDIF on an RCA connector.
  • Output Resolutions: 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200, 480i, 480p, 576p, 720p, 1080i, 1080p.
  • Controls: Input selector buttons: Blank, mute, freeze, reset to XGA/720p, panel lock. Menu functions: menu, enter, menu arrows. RS-232, Ethernet, IR.
  • Operating Temperature: 0° to +40°C (32° to 104°F).
  • Storage Temperature: -25° to +85°C (-13° to 185°F).
  • Humidity: 5% to 95%, RHL non-condensing.
  • Power consumption: 100-240V AC, 35VA max.
  • Dimensions: 19" x 7" x 1U (W, D, H) rack mountable.
  • Weight: 6 lbs (2.7 kg) approx.
  • Accessories: Power cord, rack "ears", IR remote control transmitter.
