OUR PART # LN2MIC-TAS-MON
Designed for portable digital audio recorders and mic preamps with a single output jack. This jack is typically used for headphone monitoring or connecting to a DSLR audio input for recording. The LN2MIC-TAS-MON Y-Splitter cable allows you to do both monitoring and recording from a single output jack. It also features a -35dB L Pad attenuator on both audio channels to reduce the Prosumer Line Level output (-10dBV) to your camera's mic input sweet spot level. It's the perfect mating cable for Tascam DR100 recorders when connecting to Canon D5 MkII but also works great for other similar mic preamps and DSLR cameras that require 35db of attenuation.
The cable is designed with the proper impedances to assure maximum voltage transfer and low noise operation. The cable shield is isolated on the camera end to prevent shield noise from directly coupling into the camera connector ground. The cable allows users to go directly from the audio recorder into the camera and also monitor with headphones, creating a compact and elegant interface solution. All resistor values are 1% metal film to assure similar voltage attenuation between the stereo inputs. Cable ends are labeled for proper connection.

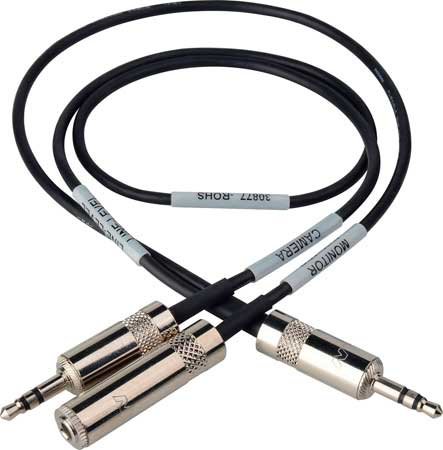

3.5mm TRS Male to 3.5mm TRS Male & 3.5mm TRS Female. 18" Overall Length.
