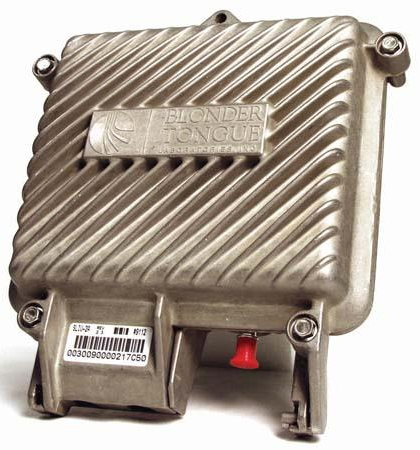

Blonder-Tongue TVCB-PC-SELF-INST
Parental Controlled TV Channel Blocker-Self Install Kit

OUR PART #:  TVCB-PC-SELF-INST

The TV Channel Blocker (Parental Controlled) (TVCB-PC) unit can be installed by the consumer and mounted at the tap output or wall mounted at the consumer’s residence.
Learn More
Our Price: $244.44
List Price: $246.41
Write the first review.
Blonder-Tongue TVCB-PC-SELF-INST
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TV Channel Blocker (Parental Controlled) (TVCB-PC) unit can be installed by the consumer and mounted at the tap output or wall mounted at the consumer’s residence. The unit physically protects the RF Connections and has a key hole for a lock if desired. The unit has push button control to select what channels to block-no management system required. Unlike traps, the TVCB-PC provides individual channel control without adjacent channel degradation. For a single family home, the TVCB-PC has all that is needed to block up to 40 analog channels simultaneously in bandwidths within channels 2-86 MHz (at medium blocking level) and 80 analog channels at the lowest blocking level for all televisions in the house. It may be house or network powered. The TVCB-PC has a forward path bandwidth of 54-860 MHZ and 5-40 MHZ return path. It has four signal conditioning accessories that may plug into the unit: Equalizer (VMI-CEQxV), Forward and Return Path Attenuators (VMI-AT), and Forward Path Trim Networks (VMI-TN).

Features:

  • Non-Addressable, Consumer Controlled and Installed
  • Stand Alone Unit, Requires No Management System or Billing Interface
  • Subscriber can Easily Change Blocked Analog Channels by Opening Unit and UsingSimple Push-Button Controls
  • Devices can be Physcially Secured with an Optional Lock
  • “Self Install” Unit Comes Complete with Everything to Install

Specifications:

Subscriber Port

  • Bandwidth: 54 to 860 MHz
  • Nominal Gain: 1.5 dB
  • Flatness: ±1.5 dB
  • Return Loss: 16 dB
  • Output Level:
      -  54 MHz: 10 dBmV
      -  600 MHz: 16 dBmV
      -  750 MHz: 17 dBmV
      -  860 MHz: 18 dBmV
  • Distortions (@ 77 Channel Loading):
      -  CTB: -60 dBc
      -  CSO: -60 dBc
      -  XMOD: -55 dBc
      -  Spurious: -60 dBc
      -  C/N: 59 dB
  • AGC: ±3 dB

Return Path

  • Bandwidth: 5 to 40 MHz
  • Loss: 2 dB
  • Flatness: 2 dBpv
  • Return Loss: 16 dB

Jamming Oscillators

  • 8 Oscillators: 54 - 600 MHz
  • Voltage Controlled Oscillator Frequency Range:
      -  VCO 1: 114-177 (ch. 14-22, 7, 99) MHz
      -  VCO 2: 179-249 (ch. 8-13, 23-28) MHz
      -  VCO 3: 252-321 (ch. 29-40) MHz
      -  VCO 4: 312-381 (ch. 39-50) MHz
      -  VCO 5: 372-453 (ch. 49-62) MHz
      -  VCO 6: 444-525 (ch. 61-74) MHz
      -  VCO 7: 516-597 (ch. 73-86) MHz
      -  VCO 8: 54-85 (ch. 2-6) MHz

Overall - Electrical

  • Hum Modulation: <-60 dBc
  • RF Leakage: Complies with FCC Part 76, Sub part K
  • Power Requirements Voltage: 37-95 VAC
  • Frequency: 50/60 Hz
  • Current Consumption:
      -  90 VAC IN: 150 mA
      -  60 VAC IN: 200 mA
  • Power Passing to Port (optional): 300 mA
  • Operating Temperature Range: -40° to +60° C
  • Relative Humidity: 5-100 %

Overall Mechanical

  • Housing - Dimensions (L x H x W): 9.5 x 4 x 10 in., 241.3 x 101.6 x 254 mm
  • Weight: 6 lbs., 2.72 kg
  • Mounting: Strand, Wall or Pedestal
  • RF IN, RF OUT and AC IN Connectors: â€śF” type, female
