West Penn 25294B-500

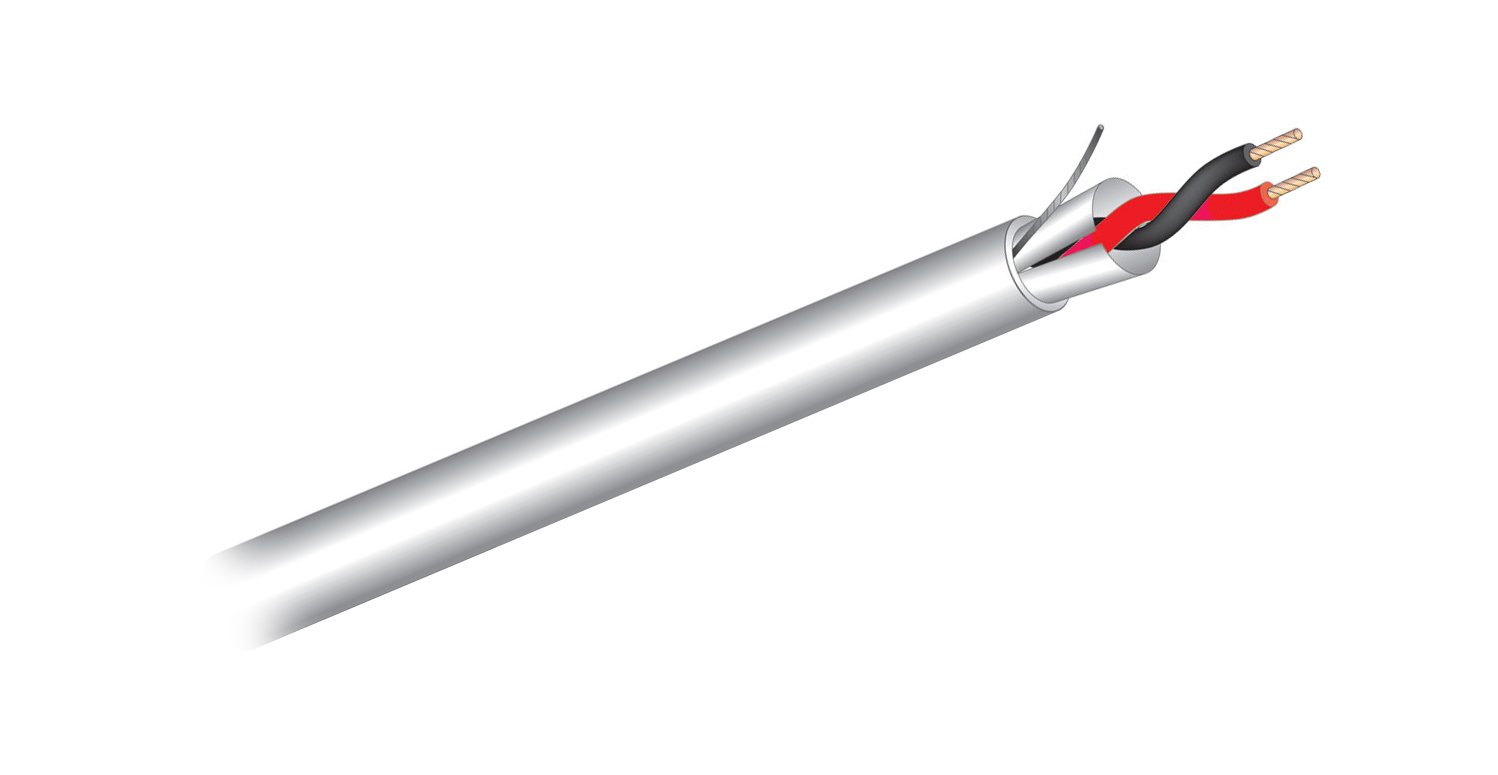

2 Conductor 16ga Cable, Bare, 500ft

OUR PART #:  25294B-500

The 25294B is a plenum communication cable with 16/2 Stranded bare copper conductors, shielded with an overall jacket.
Learn More
Our Price: $123.21
List Price: $206.10
You save 40%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 25294B-500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 25294B is a plenum communication cable with 16/2 Stranded bare copper conductors, shielded with an overall jacket.

Specifications:

  • NEC RATING: CMP, NEC Article 800
  • APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
  • APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)
  • Conductor 16 AWG Bare Copper
  • Stranding 19x29
  • Insulation Material Flex Plenum PVC
  • Insulation Thickness 0.008'' Nom.
  • Number of Conductors 2
  • Shield 100% Aluminum Polyester Foil
  • Drain Stranded Tinned Copper
  • Jacket Material Flex Plenum PVC
  • Jacket Thickness 0.015'' Nom.
  • Overall Cable Diameter 0.178'' Nom.
  • Approximate Cable Weight 30 Lbs/1M' Nom.
  • Flame Rating NFPA 262 Flame Test
  • Temperature Rating -10°C To +60°C
  • Operating Voltage 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz 75 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz 140 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C 4.2 Ohms/1M' Nom.
  • Insulation Colors Black, Red
  • Jacket Color Gray
