DPA Microphones FIDF10-2
d:fine Dual Headset Microphone with TA4F Connector, Beige

OUR PART #:  FIDF10-2

Our Price: $819.95
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIDF10-2
Qty:
In Stock

Similar Products

The DPA d:fine™ headset has the leading position when it comes to headworn microphones by combining absolute pristine audio quality with unique and simple mechanical solutions along side an extensive accessory line.

The d:fine™ has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting securely and hardly visible on both ears. The dual-ear mount is dedicated for more active situations and will be safe in even the most rigorous and energetic performance applications.

Just by rotating the boom and the earhooks, the microphone can be moved from left to right ear, or into the optimum position. The d:fine™ directional rejects side and background noise while creating higher separation from nearby sound sources which improves the gain-to-feedback ratio and gives more channel control. Yet still, natural voice intelligibility is preserved along with its very high SPL capabilities one can both speak and sing with no hint of distortion. This is where the DPA d:fine™ is head and shoulders above its competition.

Intensive protection against pop/wind noise is integrated in the microphone design and windscreens are included. Also included is a capsule protection cap, a cable clip which anchors the cable to your clothing and a color coded cable clip offering easy recognition of a specific headset among many.

A service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths/colors/connectors and is valuable for servicing broken cables.

NOTE: This headset is compatible with the following wireless systems - Line 6 XD-V70L, Shure PGX1/SC1/SLX1/ U1/ULX1/UR1/UR1M/UT1, TOA WM4300 Transmitters. For more information on this and other products, contact your Sales Representative.

DPA FIDFI0-2 Includes:

  • Microphone (boom, ear-hook, cable)
  • Make-up and moisture filter (DUA0523) pre-mounted on the mic
  • Five identification rings and one make-up cover (DUA0585)
  • Four windscreens (DUA0531)

DPA FIDF10-2 Features:

  • Pristine audio quality
  • Easy dual-ear mounting
  • Minimal visual impact
  • Adapts to all pro wireless systems

DPA FIDF10-2 Specifications:

  • Directional characteristics:  Cardioid
  • Principle of operation:  Pressure gradient
  • Cartridge type:  Pre-polarized condenser
  • Frequency range:  20 Hz - 20 kHz
  • Frequency range, ± 2 dB, Near field 2-3 cm (0.8-1.2 in):  100 Hz - 20kHz with 3 dB soft boost at 8 - 20 kHz
  • Sensitivity, nominal, ± 3 dB at 1 kHz:  6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:  Typ. 28 dB(A) re. 20 µPa (max.30 dB(A))
  • Equivalent noise level, ITU-R BS.468-4:  Typ. 40 dB (max. 42 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 66 dB(A)
  • Total Harmonic Distortion (THD):  <1 % up to 123 dB SPL peak;<1 % up to 120 dB SPL RMS sine
  • Dynamic range:  Typ. 95 dB
  • Max. SPL, peak before clipping:  144 dB
  • Output impedance:  From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100ohm
  • Cable drive capability:  Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Output balance principle:  Signal balanced with DAD6001-BC XLR adapter
  • Common Mode Rejection Ratio (CMRR):  > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
  • Power supply (for full performance):  Min. 5 V to max. 50 V throughDPA adapter for wireless systems; 48 V phantom power +/- 4 V with DAD6001-BCXLR adapter
  • Current consumption:  Typ. 1.5 mA (microphone). 3.5 mA withDAD6001-BC XLR adapter.
  • Connector:  MicroDot
  • Weight:  Microphone boom: 0.8 g (0.03 oz). Earhook: 1.1 g (0.04 oz).Cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz).
  • Microphone head size (h x w x d):  9.5 x 5.3 x 2.9 mm (0.37 x 0.21 x0.11 in)
  • Capsule diameter:  5.4 mm (0.2 in)
  • Mic boom length:  120 mm (4.7 in)
  • Cable length:  1.3 m (4.3 ft)
  • Cable color:  Black or beige
  • Cable diameter:  1.6 mm (0.06 in)
  • Polarity:  +V at MicroDot pin for positive sound pressure (and pin 2on DAD6001-BC XLR adapter)
  • Electro Magnetic Compatibility (EMC):  Fully compatible
  • Temperature range:  -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH):  Up to 90%

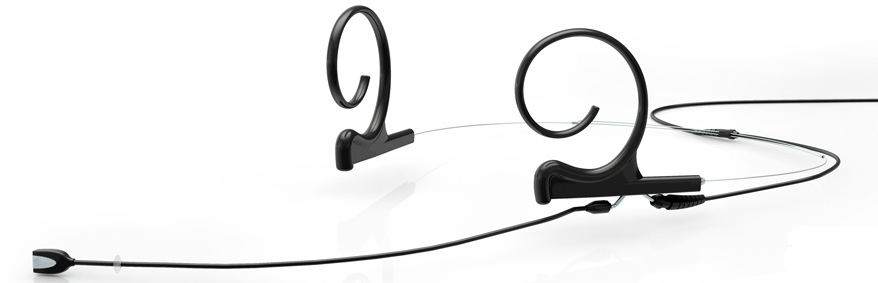

NOTE:  Image shown above is for illustrative purposes only; actual product comes in Beige.
