Cable Up M3-M3-15-BLK 15 ft 3.5mm TRS-M to 3.5mm TRS-M Industrial Balanced Interconnect Cable in Black

OUR PART #: M3-M3-15-BLK

Copied to clipboard

Cable Up's rugged Industrial line features a high-performance, shielded interconnect cable. ...Read more

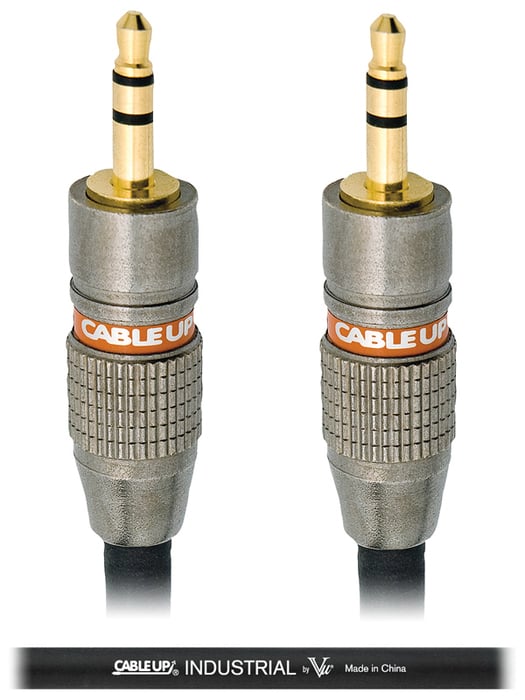

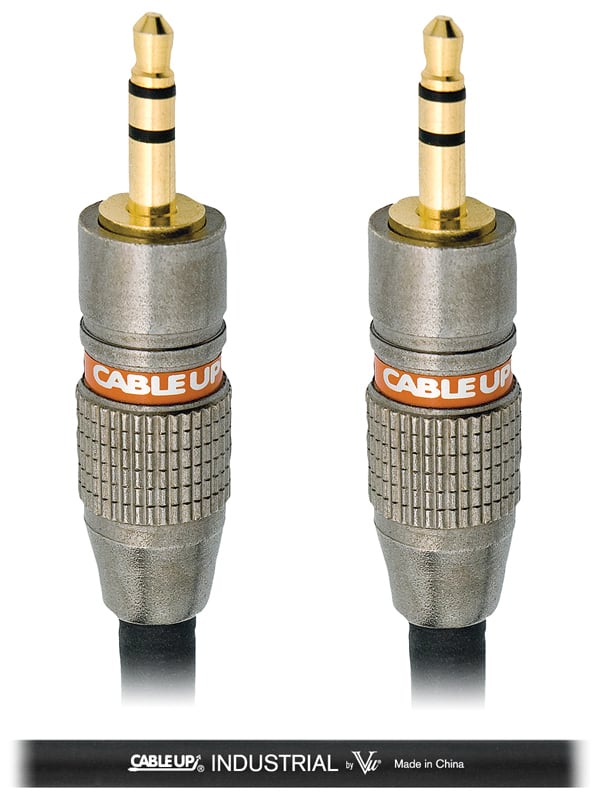

Cable Up M3-M3-15-BLK 15 Ft 3.5mm TRS-M To 3.5mm TRS-M Industrial Balanced Interconnect Cable In Black Image 1
Cable Up M3-M3-15-BLK 15 Ft 3.5mm TRS-M To 3.5mm TRS-M Industrial Balanced Interconnect Cable In Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Cable Up's rugged Industrial line features a high-performance, shielded interconnect cable. The connectors are fitted with gold plated contacts for reliable professional use at a competitive price.

All Cable Up® Industrial cables are covered by a 1-year unconditional warranty against defects in material or workmanship.

Cable Up M3-M3-15 Specifications:

  • Cable:
    • Number of Conductors: 2
    • Conductors: 24AWG
    • Stranding: 7 x 0.2 mm
    • Conductor Type: Bare Copper
    • Insulation Material: HDPE
    • Thickness: 0.6 mm
    • Core O.D.: 1.3 mm
    • Shield Type: 8x16x0.12mm + 7x0.2mm
    • Shield Style: Braid
    • Shield Material: Tinned Copper
    • Jacket Type: PVC
    • Jacket Thickness: 1.3 mm
    • Total O.D.: 5.5 mm
  • Connectors:
    • 1/8" TRS male plugs: Cable Up Part #: 18TRSM-C, Plate gold tips, rings, and sleeves
