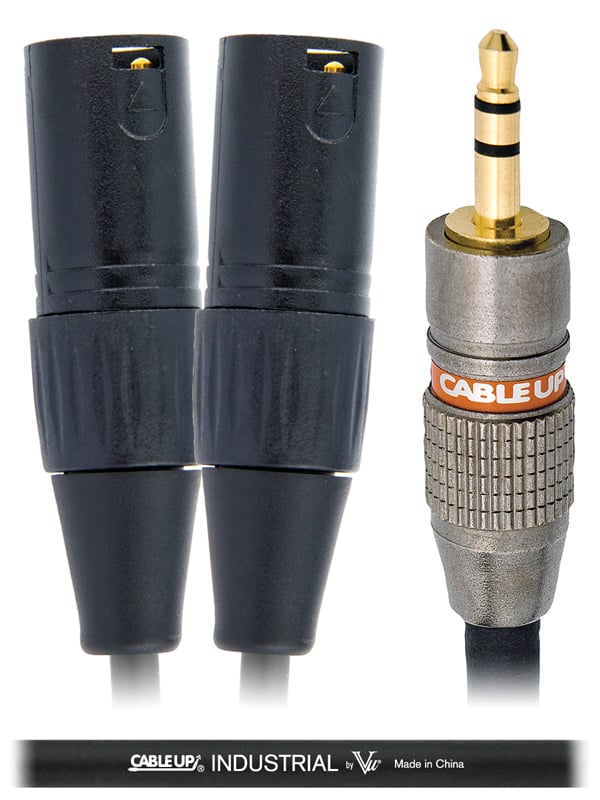

Cable Up by Vu YS-M3-XM3D-5-BLK
5 ft 3.5mm TRS-M to Dual XLR-M Y-Cable

OUR PART #:  YS-M3-XM3D-5-BLK

Wired in split configuration for single 3.5mm stereo source to split XLR stereo (Left/Right) outputs.
Learn More
Our Price: $11.87
List Price: $12.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cable Up by Vu YS-M3-XM3D-5-BLK
Qty:
Similar Products

Wired in split configuration for single 3.5mm stereo source to split XLR stereo (Left/Right) outputs.

Cable Up's Industrial line features a high-performance, yet rugged combination of low capacitance quality cable. The connectors are fitted with gold plated contacts for reliable professional use at a competitive price.

Connects to a stereo 3.5mm (1/8") headphone output (ie - portable music players or any device with a single stereo 3.5mm output) and splits it through two separate unbalanced XLR male connectors. The signal is split left and right from the single stereo signal and can be fed into a mixer or professional recorder's left and right inputs.

All CABLE UP® Industrial cables are covered by a 1-year unconditional warranty and a limited lifetime warranty against defects in material or workmanship.

Cable Up YS-M3-XM3D-5 Specifications:

  • Cable:
    • Number of Conductors: 2
    • Conductors: 24 AWG
    • Stranding: 20 x 0.2mm
    • Conductor Type: Bare Copper
    • Insulation Matnerial: HDPE
    • Thickness: 0.6mm
    • Core O.D.: 1.4mm
    • Filler/Cord Material: Cotton
    • Shield Type: 64 strands x 0.12mm
    • Shield Style: Spiral
    • Shield Material: Bare Copper
    • Jacket Type: PVC
    • Jacket Thickness: 1.6mm
    • Total O.D.: 6mm
  • Connectors:
    • 1/8" TRS male plug
      • Cable Up Part #: 18TRSM-C
      • Plate gold tip, ring, and sleeve
    • Two XLR Males
      • Cable Up Part #: XLRM-C
      • Nickel-plated contacts
