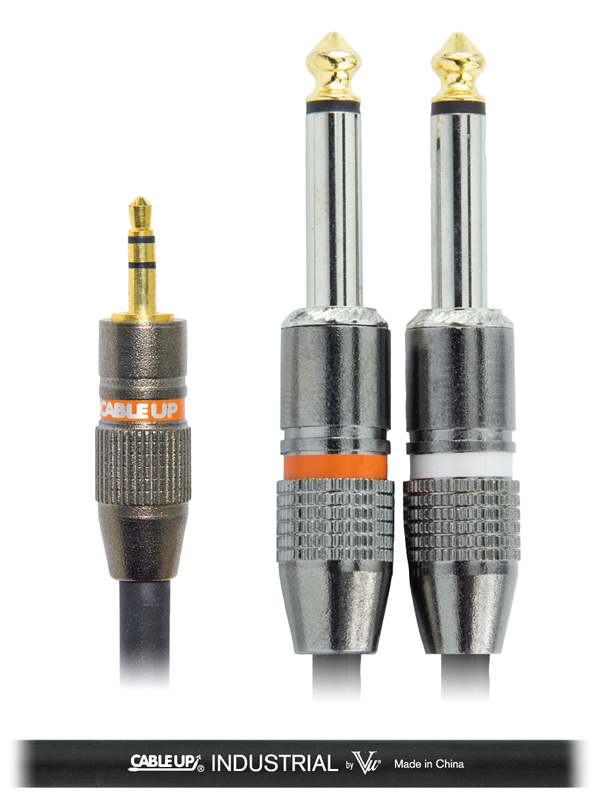

Cable Up by Vu YS-M3-PM2D-3-BLK
3 ft 1/8" TRS Male to Dual 1/4" TS Male Y-Cable

OUR PART #:  YS-M3-PM2D-3-BLK

Cable Up's Industrial audio split y-cables feature a high-performance, yet rugged combination of low capacitance quality cable.
Learn More
Our Price: $10.52
List Price: $11.00
Write the first review.
Cable Up by Vu YS-M3-PM2D-3-BLK
Qty:
In Stock

Related Products

Cable Up's Industrial audio split y-cables feature a high-performance, yet rugged combination of low capacitance quality cable. The connectors are fitted with gold plated contacts for reliable professional use at a competitive price.

All Cable UpĀ® Industrial cables are covered by a 1-year unconditional warranty against defects in material or workmanship.

Cable Up YS-M3-PM2D-3 Specifications:

  • Cable:
    • Number of Conductors: 2
    • Conductors: 24 AWG
    • Stranding: 20 x 0.2mm
    • Conductor Type: Bare Copper
    • Insulation Matnerial: HDPE
    • Thickness: 0.6mm
    • Core O.D.: 1.4mm
    • Filler/Cord Material: Cotton
    • Shield Type: 64 strands x 0.12mm
    • Shield Style: Spiral
    • Shield Material: Bare Copper
    • Jacket Type: PVC
    • Jacket Thickness: 1.6mm
    • Total O.D.: 6.5mm
  • Connectors:
    • 1/8" TRS male plug
      • Cable Up Part #: 18TRSM-C
      • Plate gold tip, ring, and sleeve
    • Two 1/4" TS Male Plugs
      • Cable Up Part #: 14TSM-C
      • Plate gold tips
