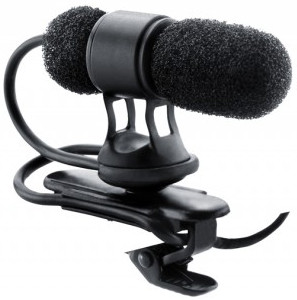

DPA Microphones 4080-BM
Miniature Cardioid Lavalier Microphone

OUR PART #:  4080-BM

Combining high audio quality and low visibility, the DPA 4080 is well suited for broadcast, conference, and other live performances in the studio or in the field.
Learn More
Our Price: $499.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones 4080-BM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Combining high audio quality and low visibility, the DPA 4080 is well suited for broadcast, conference, and other live performances in the studio or in the field.

It is acoustically pre-equalized, offering a 4 dB presence boost, which makes the voice more distinguishable and improves speech intelligibility.  Professionals will appreciate the light weight and the excellent speech reproduction.

DPA 4080 is delivered with a pre-mounted black pop filter in a holder with an integrated shock mount, fixed on a clip.  An additional white pop filter is enclosed.  Because of the flexible and practical mounting solution, the microphone can easily be turned in all directions and fits both left and right buttoned shirts.

All parts of the microphone are manufactured in highly resistant materials and designed to perform under stress.

Features:

  • Excellent speech reproduction
  • Discreet, compact design
  • Fits both left and right buttoned shirts
  • Delivered with both black and white pop filter

Specifications:

  • Directional characteristics: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ± 2 dB: 250 Hz – 17 kHz with typ. 4 dB soft boost at 4 – 6 kHz (-5 dB at 100 Hz)
  • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)
  • Total harmonic distortion (THD): < 1 % up to 123 dB SPL peak, < 1 % up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 100 dB
  • Max. SPL, peak before clipping: 134 dB
  • Output impedance: 30 – 40 ohm
  • Power supply:
    • For wireless systems: Min. 5 V – max. 50 V through DPA adapter.
    • With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.
  • Connector: MicroDot
  • Color: Black
  • Microphone weight: 15 g (0.5 oz) including cable and MicroDot connector
  • Microphone diameter: 10 mm (0.4")
  • Capsule diameter: 5.4 mm (0.2")
  • Microphone length: 30 mm (1.2")
  • Cable length: 1.2 m (4 ft)
  • Cable color: Black
  • Cable diameter: 1.6 mm (0.06")
  • Cable drive capability: Up to 300 m (984 ft)
  • Polarity: Positively increasing sound pressure produces positivegoing voltage on MicroDot pin
