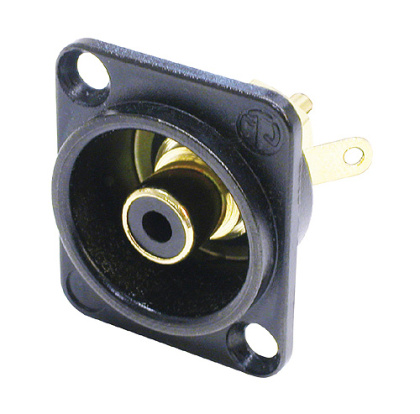

Neutrik NF2D-B-0
D-Series RCA Jack with Black Housing, Black Washers

OUR PART #:  NF2D-B-0

Neutrik's NF2D-B-0 is a phono socket in black chrome D-shape housing with black isolation washers.  Solder version.
Learn More
Our Price: $4.21
List Price: $6.02
Save up to 41% when you order by quantity!
  • Buy 25: $3.80 each.
  • Buy 50: $3.67 each.
  • Buy 100: $3.53 each.
Write the first review.

Related Products

Neutrik's NF2D-B-0 is a phono socket in black chrome D-shape housing with black isolation washers.  Solder version.

Features:

  • Precisely machined to our demanding quality standards
  • Gold plated contacts

Electrical Specifications:

  • Capacitance between contacts: = 9 pF
  • Contact resistance: <5G mO (inner)
  • Dielectric strength: 0,5 kVdc
  • Insulation resistance: < 5 GO
  • Rated current per contact: 16 A
  • Rated voltage: 50 V

Mechanical Specifications:

  • Lifetime: > 2000 mating cycles
  • Wiring: Solder contacts
  • Mounting direction: front
  • Chassis shape: D

Material Specifications:

  • Contact plating: 5 µm Au over 5 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Shell: Zinc diecast (ZnAl4Cu1)

Environmental Specifications:

  • Flammability: UL 94 HB
  • Standard compliance: IEC 601-14
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C

General Questions

Question:

Can I return a service part once it has been installed?

Answer:

Installed service parts are non returnable, unless they are defective. All defective returns are exchange only - no money will be refunded.
