Marshall Electronics V-R35P
Ten 3.5" LCD Rack Mounted Panel with Auto NTSC/PAL Detection

OUR PART #:  V-R35P

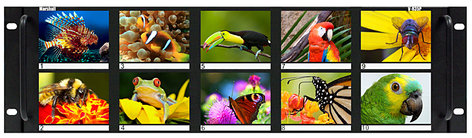

Marshall Electronics' V-R35P is a rack mounted unit that has ten 3.5" active matrix LCD panels and accepts composite inputs with reclocked loop-through capability.
Learn More
Our Price: $2,895.00
List Price: $3,406.00
You save 15%!
Write the first review.
Marshall Electronics V-R35P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Marshall Electronics' V-R35P is a rack mounted unit that has ten 3.5" active matrix LCD panels and accepts composite inputs with reclocked loop-through capability. This unit has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits in an EIA standard 19" rack -- three rack spaces high. Each of the ten screens has auto-signal recognition and auto PAL/NTSC recognition built-in. A blue screen will appear in the event of a signal loss. The V-R35P comes complete with a power supply.

Features:

  • High Resolution 320 × 234 pixels
  • Self-Terminated Video Inputs with active loop-through
  • Automatic NTSC/PAL Video Signal Detection screen
  • 90 degree tilt adjustment while mounted in rack

Specifications:

  • Display (Viewing Area): 3.5" (.81" × 1.56")
  • Resolution (Pixels): 320 H × 234 V
  • Dot Pitch: 0.105mm × 0.161mm
  • Brightness (in cd/m²): 250
  • System: NTSC/PAL auto recognition
  • Inputs per panel (total): 1(10) - Composite with reclocked loop-through
  • Dimensions: 18.96" W × 5.2" H × 2.5" D
  • Approx. Weight: 5 lbs
  • Power Consumption: 12 VDC, 3.0 Amps
