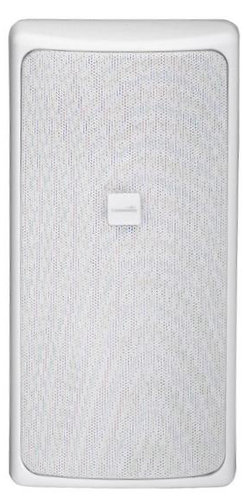

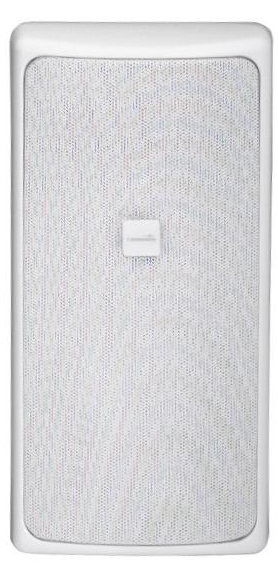

Community DS5-W
Distributed Design Series 5" Two-Way Coaxial Surface Mount Loudspeaker in White

OUR PART #:  DS5-W

The Community Distributed Design Series DS5 is a full-range, compact, two-way system that is ideal for installations where space is at a premium.
Learn More
Our Price: $182.00

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community DS5-W
Qty:
In Stock

Similar Products

The Community Distributed Design Series DS5 is a full-range, compact, two-way system that is ideal for installations where space is at a premium. Easily outperforming loudspeakers of a larger size format, the DS5 provides high power handling, high sensitivity and realistic sound reproduction. With a modern architectural appearance that aesthetically merges well in most environments, combined with weather-resistant capability suitable for indirect outdoor use, the DS5 can be used in a wide variety of speech and music applications. It is equipped with a built-in autoformer, allowing the full loudspeaker output to be realized with 70V or 100V distribution lines. A convenient front-accessible power tap switch is hidden behind a rotatable logo. Installation is simple and flexible using the included Infin-A-Ball™ multi-angle wall mounting bracket which allows low profile mounting and precise positioning of the enclosure over a broad tilt-swivel range.

Community DS5 Features:

  • Same components and voicing as the Distributed Design ceiling loudspeaker family
  • High efficiency, high output, high intelligibility, low distortion
  • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
  • Front-accessible power tap switch for selectable 8 Ohm or 70V/100V operation
  • Infin-A-Ball™ low profile mounting bracket included
  • Weather-resistant construction with treated drivers, two-layer powder coated grilles and protected wiring ingress

Community DS5 Specifications:

  • Loudspeaker Type: Two-way, full-range, coaxial surface mount loudspeaker, 8 Ohm or 70V/100V operation
  • Operating Range*: 65 Hz - 22 kHz
  • Frequency Response*: 80 Hz - 20 kHz (+/- 5.2 dB)
  • Max Input Ratings (8 Ohm):
    • 100W continuous, 250W program
    • 28 volts RMS, 63 volts momentary peak
  • Transformer Taps:
    • 70V: 60W, 30W, 15W, 7.5W and low impedance
    • 100V: 60W, 30W, 15W
  • Sensitivity (1W/1m)*:
    • 93 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands)
    • 91 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output*: 113 dB SPL / 120 dB SPL (peak 8 Ohm)
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 7.5 Ohms @ 280 Hz
  • Nominal Coverage: 130º conical (+47° / -70°, 500 Hz to 6 kHz)
  • Axial Q / DI: 4.5 / 6.5, 500 Hz to 6 kHz
  • Crossover Frequency: 1.6 kHz
  • Recommended Signal Processing: 65 Hz, 24 dB/Oct high pass filter
  • Drivers:
    • LF: 1x 5" cone
    • HF: 1x 1" exit compression driver
  • Driver Protection: Self-resetting solid state circuit breaker
  • Input Connection: 4-screw Euroblock connector for two pair of 2-wire leads (uninterrupted whether the loudspeaker is connected or not) concealed in the base of the mounting bracket; and a 2-pin Euroblock connector on the loudspeaker enclosure
  • Controls: Front-accessible wattage / low impedance selector switch hidden behind the rotatable logo
  • Enclosure: ABS plastic, matte finish, paintable
  • Mounting/Rigging Provisions: Infin-A-Ball™ mounting system with hidden internal wiring
  • Grille: Dual-layer powder coated steel
  • Safety Features: Built-in safety cable attachment loop
  • Environmental: IP55 rated loudspeakers, IP56 ratedconnector cover, designed to Mil Spec 810
  • Required Accessories: Electronic high pass filter
  • Supplied Accessories: Infin-A-Ball™ mounting bracket, Hex wrench, Flathead screwdriver
  • Optional Accessories: DS-WMP Wall Mount Plate
  • Dimensions: 12.9" H x 6.3" W x 7.5" D (328 x 160 x 191 mm)
  • Weight (without bracket): 10.3 lbs (4.7 kg)
  • Weight (with bracket): 10.8 lbs (4.9 kg)
  • *NOTE:  On-wall pink noise measurement at 6ft (1.8m) at 10% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
