Cables To Go 29269

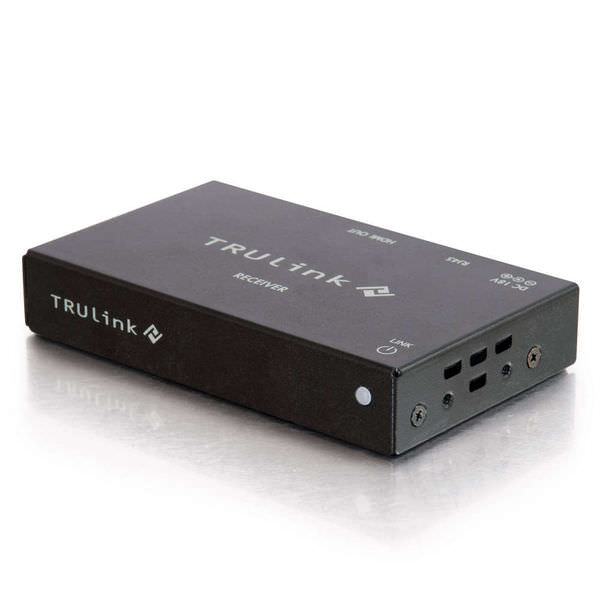

TruLink® HDMI over CAT5 Box Receiver

OUR PART #:  29269

The HDMI over Cat5 Receiver...
Learn More
Our Price: $238.44
List Price: $289.99
You save 18%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Cables To Go 29269
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The HDMI over Cat5 Receiver, when paired with a transmitter (not included- #29241) allows for the extension of an HDMI signal over solid conductor Cat5e/6 twisted pair cable* up to 300ft without signal degradation at a 1080p video resolution. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. In addition, this solution utilizes TruChoice? Power which provides the flexibility to power the system with a single power supply at either the transmitter or receiver end. HDBaseT technology allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display?s capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension. The HDMI over Cat5 extenders support advanced HDMI features such as 3D, auto lip sync, deep color, Dolby & DTS 7.1 audio, CEC and a 10.2 Gbps data transfer rate.

*NOTE:Stranded Cat5e/6 cables may be used for HDMI extension applications up to 250ft. Shielded, solid conductor Cat5e/6 cabling is recommended for applications where the Cat5e/6 cable must be coiled, is run near other high-frequency signaling cables or in high EMI/RFI environments.

Cables To Go 29269 Features:

  • Single Cat5 cable required for HDMI extension
  • HDMI features supported
  • 3D
  • Auto lip sync
  • Deep color
  • Dolby & DTS 7.1 Audio
  • Consumer Electronics Control (CEC)
  • 10.2 Gbps
  • EDID pass through
  • FCC, CE, RoHS compliant
  • Requires a transmitter to function

NOTE: The HDBaseT chipset does tend to run hot and will cause the product to feel warm to the touch. This is normal and the components have been designed and tested to run at this higher temperature.

Cables To Go 29269 Specifications:

  • Input: (1) RJ45 Female
  • Output: (1) HDMI (Type A) Port
  • Color: Black
  • Warranty: 3 Years
  • Weight: 1.200 LB
  • Resolutions supported: 1920 x 1080;1920 x 1200; 4k x 2k
