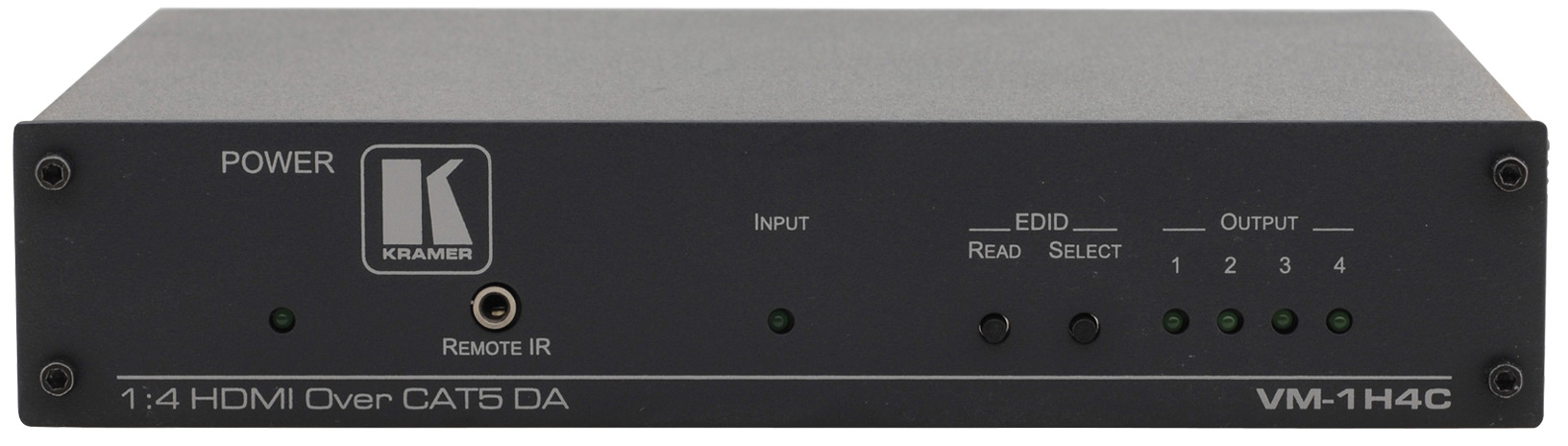

Kramer VM-1H4C
1:4 HDMI Twisted Pair Transmitter & Distribution Amplifier


The VM-1H4C is a high-quality distribution amplifier for HDMI and IR signals over twisted pair cable.
Learn More
Our Price: $1,196.00
List Price: $1,495.00
You save 20%!
Write the first review.
Kramer VM-1H4C
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The VM-1H4C is a high-quality distribution amplifier for HDMI and IR signals over twisted pair cable. It reclocks and equalizes the input signal and distributes it to four TP outputs.

Kramer VM-1H4C Features:

  • Max. Data Rate - Supports up to 4.95Gbps (1.65Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ -Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • HDMI Support - x.v.Color™ and uncompressed audio channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking™ Technology -Rebuilds the digital signal to travel longer distances.
  • System Range - Up to 90m (295ft) at 1080i, or up to30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i,or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m(330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
  • Power Connect - The VM-1H4C provides power to the twisted pair receivers when they are within 270ft (90m) of the transmitter.
  • Cable - Requires STP (shielded twisted pair) cable.For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 orBC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, source device and display used. The distance using non-Kramer CAT5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Active Input & Output LED Indicators.
  • Serial Command Handling - Receives serial commands transparently via the RS-232 port and the TP link.
  • Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with an optional RK-1 adapter.

Kramer VM-1H4C Specifications:

  • Inputs: 1 HDMI connector, 1 IR on a 3.5mm minijack
  • Outputs: 4 twisted pair on RJ-45 connectors
  • Bandwidth: Supports up to 4.95Gbps (1.65Gbps pergraphic channel)
  • Compliance with HDMI Standard: Supports HDMI andHDCP
  • Indicator LEDs: Power, INPUT, OUTPUT 1, 2, 3 and4
  • Power Consumption: 12V DC, 2A
  • Operating Temperature: 32° to 131°F (0° to+55°C)
  • Storage Temperature: –49° to 162°F (–45° to+72°C)
  • Humidity: 10% to 90%, RHL non-condensing
  • Dimensions (WxDxH): 8.5" x 6.38"x 1.7" (21.5 x 16.2 x 4.4cm)
  • Weight: 1.98lbs (0.9kg) approx.
  • Accessories: Power supply
  • Options: RK-1 19” rack adapter
