DPA Microphones ST2011A
Stereo Matched Pair of 2011A Cardioid Microphones

OUR PART #:  ST2011A

The DPA ST2011A is a stereo pair with two handpicked cardioid microphones...
Learn More
Our Price: $1,979.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones ST2011A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA ST2011A is a stereo pair with two handpicked cardioid microphones, selected on sensitivity within ±1.5 dB making several stereo principles like XY and ORTF easy to obtain.

Finding its use on numerous stages and recording sessions, the ST2011A exhibits a previously unheard blend of clarity, richness and dynamic range, the 2011As perform close to much more exclusive microphone pairs.

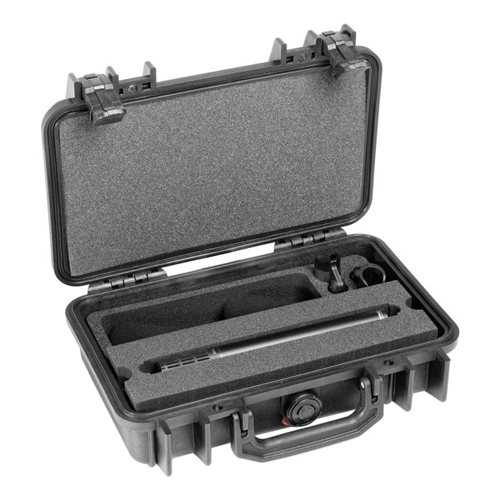

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Includes:

  • Two carefully matched 2011A cardioid microphones
  • Sturdy Peli™ case
  • Holders
  • Windscreens

Features:

  • Sensitivity selected pair
  • Superb stage separation and level control
  • All-round workhorses
  • Peli™ Case transportation and protection

Specifications:

  • Directional pattern: Cardioid
  • Principle of operation: Pressure gradient, with interference tube
  • Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ± 2 dB, at 30 cm: 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
  • Sensitivity, nominal, ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 33 dB (max. 36 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 74 dB(A)
  • Total Harmonic Distortion (THD) at 1 kHz: < 1 % up to 137 dB SPL peak
  • Dynamic range: Typ. 117 dB
  • Max. SPL, peak before clipping: 153 dB
  • Switchable attenuator: 0 dB / -20 dB
  • Output impedance: < 200 ohm
  • Minimum load impedance: 2 kOhm
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 60 dB
  • Power supply (for full specifications): 48 V Phantom power (± 4 V)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 164 g (5.8 oz)
  • Microphone diameter: 19 mm (0.75")
  • Microphone length: 198 mm (7.8")
  • Output voltage, RMS: > 5 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity: Up to 90%
  • Sensitivity selection tolerance (at 1 kHz): ± 1.5 dB
