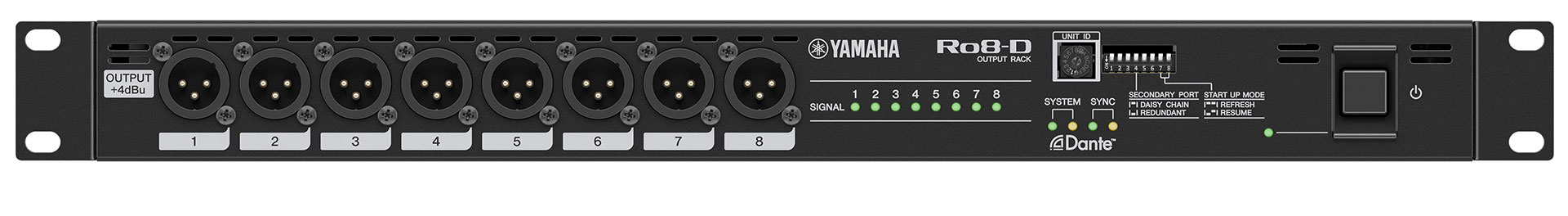

Yamaha Ro8-D
8 Channel Output Rack


Call for price! Not available online.

The Yamaha Ro8-D is an 8 channel rack mountable input rack with XLR connectors.  Connects via Dante network connector protocol.  These units serve as a portable input racks on stage and at the console position.

Yamaha Ro8-D Specifications:

  • Sampling Frequency Rate:
    • Internal 44.1kHz, 48kHz, 88.2kHz, 96kHz
    • External 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% ( ┬▒200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (+/- 200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (+/- 200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0%
  • Signal Delay:  Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
  • Total Harmonic Distortion:  Less than 0.05% 20Hz-20kHz@+4dBu into 600 Ohms, Fs=44.1kHz, 48kHz / Less than 0.05%20Hz-40kHz @+4dBu into 600 Ohms, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain= Min.
  • Frequency Response:  +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @ 1kHz, INPUT to OUTPUT, Fs=44.1kHz,48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to+4dBu output @ 1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz
  • Dynamic Range:  108dB typ., INPUT to OUTPUT, Input Gain = Min
  • Crosstalk:  -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
  • Power Requirements:  US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China:110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
  • Power Consumption:  35W
  • Dimensions:
    • Width 480mm (18 7/8in)
    • Height 44mm (1 3/4in)
    • 359mm (14 1/8in)
  • Net Weight:  4.4kg (9.7lbs)

    NOTE:  For full specifications on this product, refer to the attached Manual in the Documentation Tab
