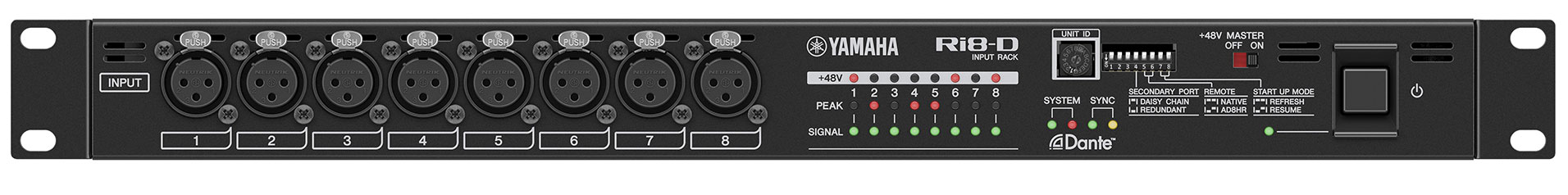

Yamaha RI8-D
8 Channel Input Rack


Call for price! Not available online.

The Yamaha RI8-D is an 8 channel rack mountable input rack with XLR connectors.  Connects via Dante network connector protocol.  These units serve as a portable output rack on stage and at the console position.

Yamaha RI8-D Specifications:

  • Sampling frequency rate
    • Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz
    • External: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% ( ±200ppm)
      48kHz: +4.1667%, +0.1%, -0.1%, -4.0% ( ±200ppm)
      88.2kHz: +4.1667%, +0.1%,-0.1%, -4.0% ( ±200ppm)
      96kHz: +4.1667%, +0.1%, -0.1%, -4.0%
  • Signal delay: Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
  • Total harmonic distortion: Less than 0.05% 20Hz-20kHz@+4dBu into 600 Ohms, Fs=44.1kHz, 48kHz
    Less than 0.05%20Hz-40kHz@+4dBu into 600 Ohms, Fs= 88.2kHz, 96kHz INPUT to OUTPUT, Input Gain= Min.
  • Frequency response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output@1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz< BR> +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz
  • Dynamic range: 108dB typ., INPUT to OUTPUT, Input Gain = Min
  • Crosstalk: -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
  • Power requirements:
    • US/Canada: 120V 60Hz
    • Japan: 100V 50/60Hz
    • China:110-240V 50/60Hz
    • Korea: 220V 60Hz
    • Other: 110-240V 50/60Hz
  • Power consumption: 35W
  • Dimensions: 18-7/8" W x 1-3/4" H x 14-1/4" D (480 x 44 x 362 mm)
  • Net weight: 9.9 lbs (4.5 kg)

NOTE: See the "Documentation"tab above for more specifications.
