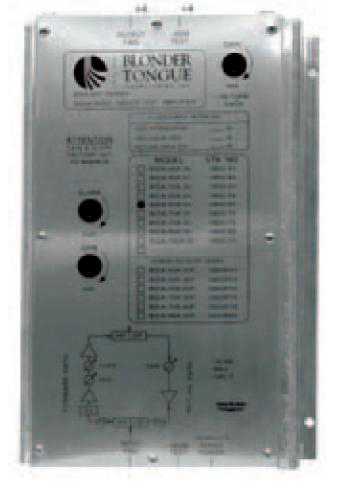

Blonder-Tongue BIDA75A-43
49-750MHz Broadband Distribution Amplifier

OUR PART #:  BIDA75A-43

The BIDA 5800 and 5900 Series are professional quality, two-way broadband indoor distribution amplifiers.
Learn More
Our Price: $665.88
List Price: $671.00
Write the first review.
Blonder-Tongue BIDA75A-43
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The BIDA 5800 and 5900 Series are professional quality, two-way broadband indoor distribution amplifiers. These amplifiers are ideal for multi-channel RF distribution systems for which the input source is a “cable drop” or the output of a MATV/ SMATV/CATV headend.

The BIDA 5800 Series features models having RF bandwidths of 550,750, 860 and 1000 MHz. Push-pull and power-doubling hybrid amplifier technologies are available on the two series. Both the BIDA 5800 and 5900 series are factory equipped for 2-way operation. The 5800 series has a 36/49 MHz split where the 5900 series has a 42/54 MHz (reverse/forward) split. Both series leave the factory set for passive return path operation. Active return path operation can easily be accomplished by reconfiguring a few internal jumpers.

The BIDA 5800/5900 Series utilizes an external power transformer providing 26 VAC to the amplifier. This enables the amplifiers to be remotely powered via low voltage AC wiring should a 120 VAC electrical outlet not be in close proximity to the desired amplifer location.

Features:

  • Interstage Variable Gain and Slope Controls
  • Optional Plug-in Fixed Equalizer and Attenuator Capability For Input Signal Conditioning
  • Integrated Return Path Configurable for either Passive or Active Operation
  • Push-Pull and Powering Doubling Hybrid Models Available
  • Input and Output Test Ports
  • Large Heat Sinks for Exceptional Heat Dissipation

Specifications:

  • Gain Control Range: 10 dB
  • Slope Control Range: 8 dB
  • Hum Modulation: 70 dB
  • Impedance - All Ports : 75 Ohm
  • Return Loss:
      -  Input: 16 dB
      -  Output: 16 dB
  • Size (LxWxH):
      -  7.25 x 3.25 x 10.25 in.
      -  18.42 x 8.26 x 26.04 cm
  • Weight:
      -  6 lbs.
      -  2.7 kg
  • Power Requirements: 117VAC, 60Hz Power
  • Frequency Range (MHz): 49-750
  • Channel Loading: 110
  • Flatness (dB): +/- 0.7
  • Hybrid Technology (dB): Push-Pull
  • Gain (dB): 50
  • Noise Figure (dB) (a): 8.5
  • Output Level (dBmV): 36/44
  • Test Port Level: Input/Output (dB): -30, +/-2
  • Composite Triple Beat - CTB (dB) (b): -56
  • Cross Modulation - XMOD (dB) (b): -60
  • Composite Second Order - CSO (dB) (b): -59
