Liberty AV Solutions 12-2C-P-BLK

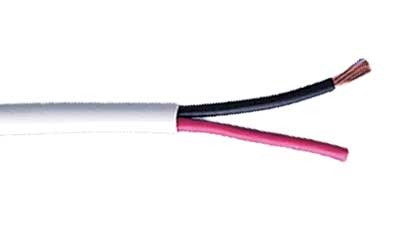

12 AWG 2 Conductor Twisted Unshielded Cable

OUR PART #:  12-2C-P-BLK

Commercial grade 12 AWG 2 conductor twisted unshielded featuring a plenum rating and economical construction.
Learn More
Our Price: $732.60
List Price: $814.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions 12-2C-P-BLK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Commercial grade 12 AWG 2 conductor twisted unshielded featuring a plenum rating and economical construction.

General Purpose Cable, Commercial Grade

Features:

  • Stranded Annealed Bare Copper Conductors
  • Plenum rated PVC Alloy insulation
  • Twisted, unshielded
  • Plenum rated PVC Jacket
  • NEC CL3P, CEC CMP FT6, RoHS Compliant
  • 1000 Foot Spools

Applications:

  • Speaker Level Audio Distribution
  • 70V Speaker systems
  • DC Power, Class 2 and Class 3 power, system control

Specifications:

  • Summary  CONTROL Wire: 12/2 stranded twisted unshielded 300V CL3P jacketed .256 OD
  • Print Legend  LWC 12-2C-P E190607-* 12 AWG TYPE CL3P (UL) C(UL) CMP FT-6 75┬░C
  • Conductor Count  2
  • Conductor Group  Conductor
  • Conductor Total  2
  • Conductor Gauge  12 AWG
  • Strand Count  19
  • Strand Gauge  25 AWG
  • Conductor Composition  BC - BARE COPPER
  • Conductor Diameter  0.090 Inches
  • Conductor Insulation Composition  PL-PVC - PLENUM RATED POLYVINYL CHLORIDE
  • Conductor Insulation Thickness  0.011 Inches
  • Conductor Insulation Diameter  0.112 Inches
  • Conductor Lay  4
  • Conductor Twist per Foot  3.00
  • Conductor Color Code  BLACK, RED
  • Ripcord Present  YES
  • Jacket Composition  PL-PVC - PLENUM RATED POLYVINYL CHLORIDE
  • Jacket Thickness  0.015 Inches
  • Overall Diameter  0.256 Inches
  • Jacket Colors  BLACK; WHITE
  • Weight  62
  • Bend Radius  2.56
  • Temperature Rating  75 Degrees Celsius
  • NEC Rating  CL3P
  • NEC Art  725
  • CEC Rating  CMP FT6
  • ROHS Rate  Yes
  • Static Print  LWC 12-2C-P
  • Foot Marker  YES
