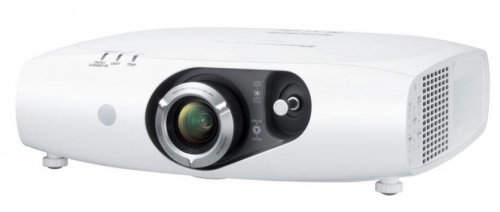

Panasonic PT-RW430UW
WXGA Projector in White, 3500 Lumens


Panasonic's PT-RW430 use a LED/Laser-combined light source for next-generation projection.
Learn More
Our Price: $2,726.46
List Price: $5,299.00
You save 49%!
Write the first review.
Panasonic PT-RW430UW
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Panasonic's PT-RW430 use a LED/Laser-combined light source for next-generation projection. Loaded with features for professional integration, the series expand projection capabilities in museums, digital signage and more.

Benefits of the PT-RZ470 Series:

1. Long-Lasting Reliability and High Picture Quality:

  • Approximately 20,000 hours of LED/Laser operation
  • 3,000 lumen class high brightness with WXGA resolution
  • Superb contrast ratio of 20,000:1
  • Vivid images with wide color space
  • DICOM Simulation mode reproduces easy-to-view rendering of X-ray photos*
    *This product is not a medical instrument. Do notuse it for actual medical diagnosis.
  • Rec. 709 mode for HDTV projection
  • Daylight View Basic technology ensures clear images even in brightly litrooms

2. Expanding Installation Flexibility:

  • 2x zoom and exceptionally wide lens shift range
  • Vertical and horizontal 360° installation
  • Portrait mode compatible
  • Digital Link powered by HDBaseT™ technology allows HDMI, and other full uncompressed HD video signals, audio, and control commands to be sent via asingle CAT5e (STP) cable or higher
  • Allows digital signal transfer to up to 100 m (328 ft)
  • Compatible with optional (sold separately) ET-YFB100 or other switchers with HDBaseT™ chipset
    (Crestron's DigitalMedia 8G+™, Extron's XTP Systems and AMX's DGX Digital Media Switchers)
  • No maintenance allows installation flexibility
  • Lens-centered design

3. Professional System Integration:

  • Built-in Edge Blending and Color Matching
  • Multi-Unit Brightness Control function
  • 3D ready
  • 24/7 continuous operation
  • Virtually instant power on/off
  • No limitation of on/off cycle
  • No filter
  • Eco Management feature for low power consumption
  • Multi Projector Monitoring and Control Software allows multiple projectors to be managed together over a wired LAN or RS-232C
  • Compatible with Crestron RoomView™
  • Closed caption decoder built in for the US market

ECO Conscious Design:

  • Lamp-free (no mercury)
  • Low heat dissipation
  • RoHS Directive compliant
  • No halogenated flame retardants are used in the projector's cabinet

Panasonic PT-RW430 Includes:

  • Power cord with secure lock
  • Wireless remote control unit
  • Batteries for remote control
  • Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring &Control Software)

Panasonic PT-RW430 Features:

  • No More Maintenance: Approximately 20,000 hours of maintenance-free time with long-lasting high brightness and picture quality.
  • Virtually Instant Projection: No warm up time and limitation to on/off cycle.
  • Installation Flexibility: 2x zoom and wide lens shif tcapability enable easy first time and replacement installations.
  • System Integration Features: Edge Blending, Color Matching, Multi-Unit Brightness Control and 3D capability all built into the PT-RZ470 Series.
  • Portrait Mode Compatibility: 360° installation and portrait mode compatibility enable projection onto many surfaces.
  • Low Power Consumption: Low standby power consumption of about 0.4 W.
  • Digital Link: Carry all uncompressed digital signals, control commands, audio from a single CAT5e (STP) cable or higher for up to100 m (328 ft) of long distance. Compatibility with HDBaseT™ technology enables high-speed, large-capacity transmission over a single cable.

Panasonic PT-RW430 Specifications:

  • DLP Chip:
    • Panel Size: 0.65" (16.5 mm) diagonal (16:10 aspect ratio)
    • Display method: DLP chip x1 projection system
    • Pixels:1,024,000 (1,280 x 800) pixels
  • Lens: Manual zoom (2x zoom), manual focus F 2.0-3.4, f 21.5-43.0 mm
  • Throw ratio: 1.5-3.1:1
  • Light source: LED and laser diodes
  • Screen size (diagonal): 1.02-7.62m (40"-300"), 16:10 aspect ratio
  • Brightness**: Above 3,000 lumens
  • Center-to-corner uniformity**: 90%
  • Contrast**: 20,000:1 (full on/off)
    **Measurement, measuring conditions and method of notation all comply with ISO 21118 international standards.
  • Resolution: 1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels)
  • Optical axis shift:
    • Vertical: +69%/-46% from center of screen (manual)
    • Horizontal: +28%/-37% from center of screen (manual)
  • Keystone correction range: Vertical: ±40°
  • Terminals:
    • DVI-I IN (digital): DVI-I 29-pin x1 (DVI 1.0compliant, compatible with HDCP, compatible with single link only)
    • HDMIIN: HDMI 19-pin x1 (Deep Color, compatible with HDCP)
    • VIDEOIN: RCA x1
    • COMPUTER 1 IN: D-sub 15-pin (female) x1(RGB/YPBPR)
    • DVI-I IN (analog): DVI-I 29-pin x1 (RGB/YPBPR)
    • AUDIO IN: M3 (L, R) x1
    • AUDIO OUT: M3 (L, R) x1
    • DIGITALLINK IN: RJ-45 x1 (HDMI, linear PCM audio, 100Base-TX, compliant with PJLink™)
    • SERIAL IN: D-sub 9-pin (female) x1 for external control (RS-232C compliant)
    • 3D SYNC OUT: Mini DIN 3-pin x1 (for 3D transmitterconnection)
  • Dimensions (WxHxD): 17-29/32" x 4-29/32" *** x 16-11/32" (455 x1 25*** x415 mm)
    ***With legs at shortest position.
  • Weight****: Approximately 22 lbs (10 kg)
    ****Average value. May differ depending on the actual unit.
  • Operating environment: Operating temperature:0°C–45°C (32°F–113°F), operating humidity: 20%–80% (no condensation)
