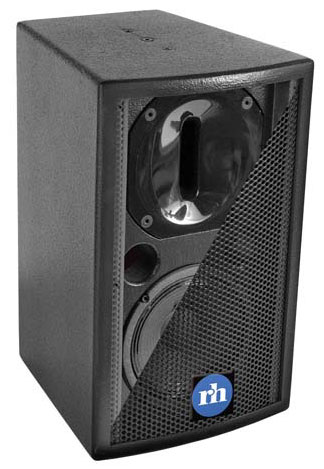

Product Overview
CF Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.
Available Colors:
Applications: Virtually any application where size is a critical issue and outstanding sonic performance is required.
Permanent Installations:
- Ideal for fills, delays, distributed and playback systems
- Churches, schools, sports venues, board rooms, malls, tranportation venues, retail environments
Portable Applications:
- Ideal solution for portable, compact, full-range sound reinforcement requirements.
- Performing artists, rental A/V, schools, churches, etc.
Features:
- High Volume Output, Small Enclosures: 80 Hz to 20 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design.
- Flexible Input Configurations: Choose passive inputs, or go self-powered with the PF1-200 series intelligent amplifier, either with or without RHAON.
- RHAON Audio Operations Network: Self-Powered CF61-2R cabinets are RHAON empowered for flexible digital signal distribution, loudspeaker management and control using standard Ethernet hardware and cabling.
- Exclusive 150° by 60° Complex Conic Design: Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
- 1" Extended Range Titanium HF Driver: Provides smooth, low distortion, high frequency performance to 20 kHz and beyond.
- Heavy-Duty 6.5" Woofer: Easily handles 120 Watts of program power.
Specifications:
- Sensitivity: 1.0 V for RPO
- Maximum SPL: 114 dB peak
- Dispersion: 150° H by 60° V
- Frequency Response: ± 3 dB, 80 Hz to 20 kHz
- HF Driver: 1" Titanium driver, model SSD140-8F; 15 W RMS, 30 W pgm
- LF Driver: 6.5" woofer, model SSL6.5-9F; 1" VC; 60 W RMS @ 16 Ohms, 120 W pgm
- Enclosure: 13-ply hardwood, perforated metal grille
- Finish: Black or white paint
- Hardware: 12-point universal mounting hardware (Metric M6 threads)
- Dimensions: 16" H x 9-7/8" W x 11" D (40.6 cm x 25 cm x 28 cm)
- Net Weight: 23.2 lbs (10.5 kg)
PF1-200 Digital Amplifier Specifications:
- Power: 200 W RMS @ 4 Ohms
- Frequency Response: +0.0, -.5 dB, 20 Hz to 20 kHz
- THD Distortion: < 0.02% typical
- Hum & Noise:< 100 dB (A weighted)
- Damping: >100
- Input: 10K Ohm balanced differential
- Sensitivity: 1.0 V for RPO
- CMR: 74 dB
- Controls: Gain (screwdriver adjustable)
- Power Connector: IEC Power connector
- Input: Looping XLR; female in, male out (pin 1 chassis, pin 2 +, pin 3 -)
- Power: Switchable:
- 115 or 230 V AC, 50/60 Hz
- 2.4 A @ 120 V, 1.2 A @ 240 V
- Idle current: 200 ma @120 V; 100 ma @ 240 V
- Max inrush current: 1 A
