Mojave MA301-FET MA-301fet Multi-Pattern Large Diaphragm Solid-State Condenser Microphone

OUR PART #: MA301-FET MFR #: MA-301fetVG

Copied to clipboard

The MA-301fet is a multi-pattern large diaphragm, solid-state condenser microphone. ...Read more

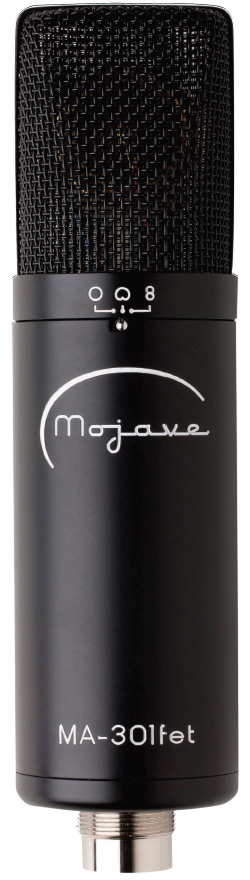

Mojave MA301-FET MA-301fet Multi-Pattern Large Diaphragm Solid-State Condenser Microphone Image 1
Mojave MA301-FET MA-301fet Multi-Pattern Large Diaphragm Solid-State Condenser Microphone
Our Price: $999.00
List Price: $1,100.00
You save 9%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The MA-301fet is a multi-pattern large diaphragm, solid-state condenser microphone. Based upon the popular MA-201fet designed by David Royer, the MA-301fet adds a 3-posistion pickup pattern selector, a 15dB pad and a switchable bass roll-off.

Utilizing a 3-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-301fet performs at a level reminiscent of some of the best loved classic condenser microphones. Each MA-301fet microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.

Recommended Applications:

  • Vocals
  • Voice Over and Broadcast
  • High SPL sources, such as Kick Drums and Bass Guitar Amps
  • Electric Guitar
  • Piano
  • Drum Overheads, Drum Rooms

Features:

  • Multi-pattern: Cardioid, Omnidiectional, Figure-eight (Bi-directional)
  • Switchable 15dB pad
  • Switchable Bass Roll-off
  • Hand-selected 3-micron 1" capsule
  • Jensen audio transformer
  • Military-grade FET
  • Custom designed low-noise resistors
  • Ultra clean signal path

Specifications:

  • Transducer Type: Externally polarized, pressure gradient capacitor - double diaphragm.
  • Diaphragm: 1-inch diameter, gold sputtered
  • Diaphragm Thickness: 3 microns
  • Polar Pattern: 3 patterns; omni, cardioid and figure-8
  • Frequency Response: 20 Hz to 20 KHZ, +/-3 dB at "flat" setting of bass cut switch. Bass cut switch provides 6 dB per octave attenuation below 100 Hertz in "cut" setting
  • Sensitivity: -40.5 dB, re. 1V/pa
  • Maximum SPL: 120 dB with pad off, 135 dB with pad on.
  • Distortion < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on]
  • Self Noise: 14dB nominal, not to exceed 16dB (A weighted)
  • Pad: 15 dB
  • Bass Cut: 6 dB per octave below 100 hertz.
  • Impedance: 550 ohms, transformer balanced (Jensen)
  • Powering: 48VDC phantom power; current 1.2 mA
  • Dimensions and Weight: Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lbs. Microphone: 7 5/8" X 2" (194mm x 51mm), 1 lb. (0.45Kg)
  • Polar Pattern:
  • Frequency Response:
