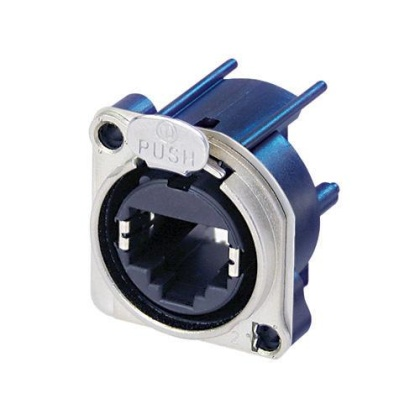

Neutrik NE8FBH
etherCON B-Series Horizontal PCB Mount RJ45 Female Receptacle

OUR PART #:  NE8FBH

Neutrik's etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications.
Learn More
Our Price: $4.29
List Price: $6.13
Save up to 41% when you order by quantity!
  • Buy 25: $3.87 each.
  • Buy 50: $3.74 each.
  • Buy 100: $3.60 each.
Write the first review.
Related Products

Neutrik's etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications.  The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The B-Series offers a space-saving design and a rugged metal front plate.

Neutrik NE8FBH Features:

  • Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Ground panel connection
  • B-Series cutout with latch lock
  • Maximum panel thickness: 3 mm

Neutrik NE8FBH Specifications:

Electrical Specifications:

  • Contact resistance: < 10 mOhms (inner)
  • Dielectric strength: 1 kVdc
  • Frequency range: 1 - 100 MHz
  • Insulation resistance: > 0.5 GO
  • Rated current per contact: 1,5 A
  • Rated voltage: 50 V
  • Transmission performance: Class D
  • Standard compliance: TIA/EIA 586B, IEC11801

Mechanical Specifications:

  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Panel thickness: max. 3 mm 0.12'
  • Wiring: Horizontal PCB mount
  • Locking device: Latch lock
  • Mounting direction: rear
  • Chassis shape: B

Material Specifications:

  • Contact plating: 0.2 µm Au over Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: PBTP 15 % GR
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel

Environmental Specifications:

  • Flammability: UL 94 V-0
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
