Aviom A360
Qty:
In Stock

Similar Products

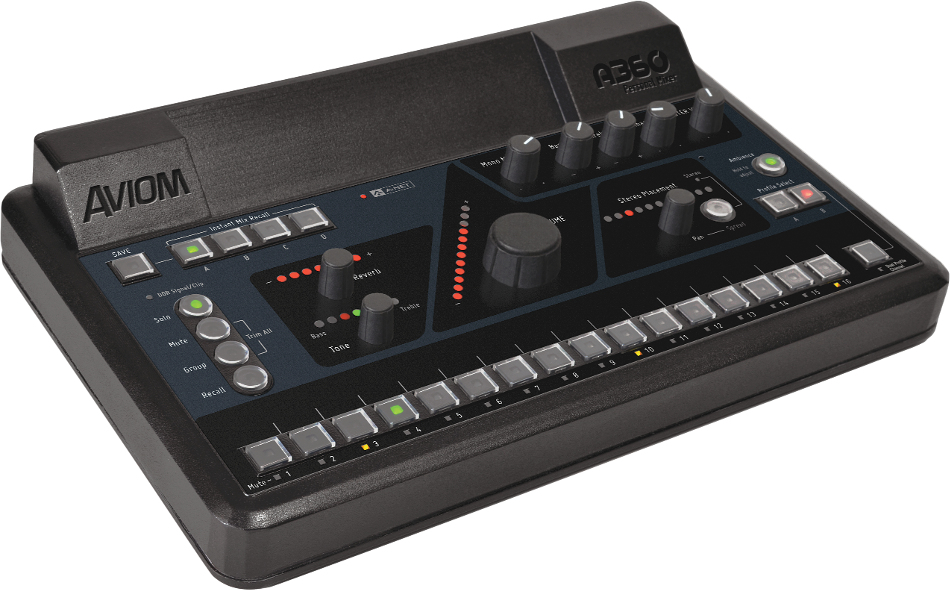

Aviom’s A360 Personal Mixer brings new levels of control and customization to personal mixing and is the perfect solution for controlling musicians’ monitors on stage or in the studio. It includes an advanced 36-channel mix engine which can be used to mix up to 16 mono or stereo standard channels plus mono or stereo ambience and the unique Dual Profile Channel™. The A360 has been designed specifically to enhance the experience of in-ear monitor users and it also works great with headphones in the studio.

As with all Aviom personal mixing products, the A360 offers a truly useful set of features that are easy to understand and use. All mixing features are instantly available—no menus to navigate, no complex programming, no computer required—so customizing and adjusting a mix is fast and intuitive, even in the middle of performing.

And of course it's fully compatible with all Aviom personal mixing systems.

Aviom A360 Features:

  • Advanced 36-channel mix engine
  • Customizable channel selection and layout
  • Per-channel volume, reverb, tone, Stereo Placement
  • Dual Profile Channel
  • One-Touch Ambience
  • Four Instant Mix Recalls plus 16 standard presets
  • Master Bass, Treble, and Enhance
  • 1/4" and 1/8" Stereo Mix Out, plus XLR Mono Mix Out
  • USB profile transfer
  • Optimized for in-ear monitors and headphones

Aviom A360 Specifications:

  • Audio Output:
    • 1/4” TRS stereo, headphone or line level
    • 1/8” TRS stereo, headphone or line level
    • XLR balanced mono, line level
  • Stereo Mix Outputs, Headphone/Line:  Tip: AudioLeft; Ring: Audio Right; Sleeve: Ground
  • Mono Mix Output:  Pin 2: Hot, Pin 3:  Cold;Pin 1: Ground
  • A-Net:  1 A-Net In, EtherCon RJ45 connector;Supports Pro16 and Pro16e
  • Digital to Analog Conversion & Bit Depth: 44.1/48kHz, 24-bit
  • Stereo Operation:
    • Stereo Link, per channel pair
    • Set at the input module; Variable pan per mono channel or pan/spread per stereo channel pair
  • USB Storage:  Save/load mix configuration dataand mixer presets; Firmware updates
  • Headphone Output:  1.0 watt at 100 ohms(Line/Headphone output)
  • Output Impedance:  32 Ohms
  • Frequency Response:  2 Hz - 22 kHz+0.2dB/-3dB
  • THD+N:  < 0.003%
  • Signal to Noise (unweighted):  -106dB (measuredwith zero data into all channels)
  • Latency:  <0.880 msec (measured from analoginput to analog output)
  • Pro16e A-Net:
    • Use unshielded Cat-5e UTP (or better) cable
    • Maximum 400 ft (122 m) between devices
    • Supports Power Over A-Net
  • Power Supply:
    • Input Voltage: 100-240 volts, 50/60Hz
    • Output Voltage:  24 VDC, 0.5 amp
    • Plug Size:  External, DC, universal switching type: 2 mm
  • Dimensions (WxDxH):  11” x 6.9" x 1.835" (279.4 mmx 175.26 mm x 46.61 mm)
  • Weight:  3.4 lbs. (1.54 kg)
  • Options:
    • MT-1a Mic Stand Mount (uses 6-32 1/4-inch screws)
    • EB-1 Extension Bracket
    • PS-120 Power Supply
