Kramer VP-480
Composite Video & Stereo Audio to 3G HD-SDI ProScale™ Digital Scaler

OUR PART #:  VP480

The VP-480 is a high-performance digital scaler for composite video and unbalanced stereo audio signals.
Learn More
Our Price: $716.00
List Price: $895.00
You save 20%!
Write the first review.
Kramer VP-480
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The VP-480 is a high-performance digital scaler for composite video and unbalanced stereo audio signals. The unit embeds the audio in the video stream and scales it to two SDI, HD-SDI or 3G HD-SDI signals.


  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
  • Video Inputs - Composite video on a BNC connector.
  • Audio Input - Unbalanced stereo audio on RCA connectors.
  • Output Resolutions - Up to 1080p (3G HD-SDI).
  • Built-In ProcAmp Features - Color hue, sharpness, contrast and brightness.
  • Freeze Button.
  • Non-Volatile Memory - Saves final settings.

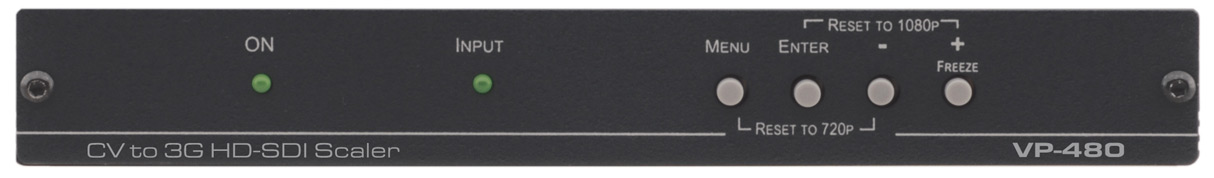

  • Controls - Front panel buttons with OSD (on screen display).
  • Compact MegaTOOLS™ - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.


  • Inputs: 1 composite video on a BNC connector, 1 unbalanced stereo audio on 2 RCA connectors.
  • Outputs: 2 SD/HD/3G HD-SDI on BNC connectors.
  • Input Resolutions: See the document “Kramer Scalers Input-Output Resolutions” available for download in the Documentation tab above.
  • Output Resolutions: 720p, 1080p SF30/29/25, 1080p @30/29/25/24/23, 1080p @59, 1080i @59, 720p @59, 480i @59, 576i, 1080p @50, 1080i @50, 720p @50, 1080p, 1080i (all resolutions are outputted @60Hz, except where noted).
  • Output Refresh Rate: 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions.
  • Output Size: Full, panscan, best fit, letterbox, underscan, overscan.
  • Processing Delay: 30ms.
  • Controls: Menu, Enter, “–“ and +/Freeze front panel buttons.
  • Power consumption: 5V DC, 1.53A.
  • Operating Temperature: 32° to 131°F (0° to +55°C).
  • Storage Temperature: -49° to 162°F (-45° to +72°C).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions: 7.4” x 4.5” x 1” (18.8cm x 11.4cm x 2.5cm) W, D, H.
  • Weight: 1.04 lbs (0.47 kg) approx.
  • Accessories: Power supply.
  • Options: RK-T2B 19" rack adapter.
