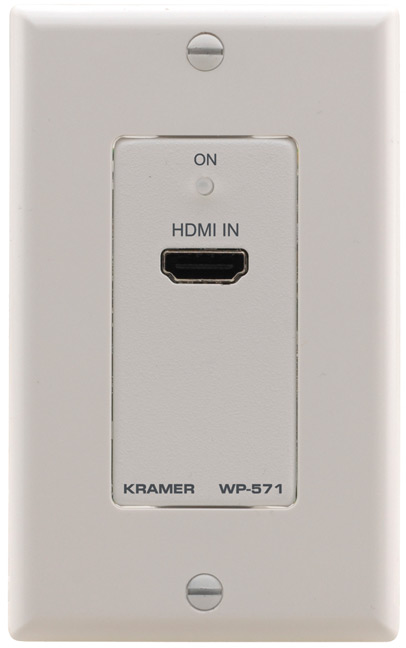

Kramer WP-571
Active Wall Plate - HDMI over DGKat Twisted Pair Transmitter

OUR PART #:  WP-571

The Kramer WP-571 is a DGKat™ wall plate transmitter for HDMI signals. The WP-571 converts an HDMI signal to a DGKat™ twisted pair signal that it transmits to a WP-572.
Learn More
Selected Model Price: $156.00
List Price: $195.00
Save up to 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Kramer WP-571
Select a Model: (shipping times are approximate)

Similar Products

The Kramer WP-571 is a DGKat™ wall plate transmitter for HDMI signals. The WP-571 converts an HDMI signal to a DGKat™ twisted pair signal that it transmits to a WP-572.

Available Finishes:

  • White
  • Off-White
  • Grey

Kramer WP-571 Features:

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
  • HDTV Compatible
  • HDCP Compliant
  • DGKat™ Signal Integration: Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted paircables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
  • HDMI Support: HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD
  • 3D Pass-Through
  • System Range: Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable
  • Cable: Requires shielded twisted pair (STP) cable. For optimum range and performance use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables.Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground
  • EDID PassThru: Passes EDID signals between the source and display
  • Active Power Indication: The ON LED lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached
  • Power Connect™ System: A single connection to the transmitter powers the receiver

Kramer WP-571 Specifications:

  • Inputs: 1 HDMI connector
  • Outputs: 1 DGKat™ twisted pair on a RJ-45 connector
  • Bandwidth: Up to 4.95Gbps data rate (1.65Gbps per graphics channel)
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Power Consumption: 12V DC, 360mA (transmitter and receiver together)
  • Dimensions (WxDxH): 1.3" x 1.42" x 4.1" (3.3cm x 3.6cm x 10.4cm)
  • Weight: 0.18 lbs (0.08 kg)
  • Accessories: Power supply.
