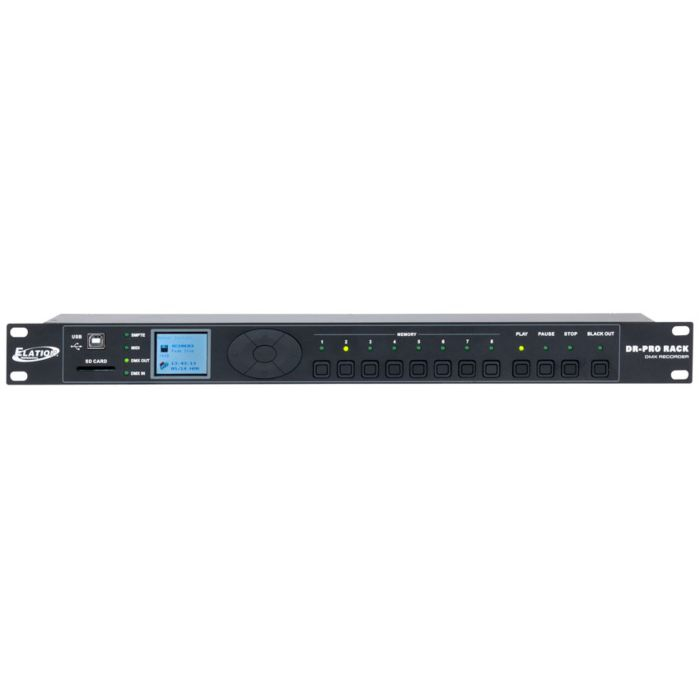

Elation DR-PRO RACK 19" Rackmount DMX Recorder / Playback Device

OUR PART #: DR-PRO-RACK MFR #: DRP665

Copied to clipboard

The DR-PRO RACK from Elation allows you to transfer up to 5 hours of recorded lightshows and play back using either of the playback sequence buttons. ...Read more

Elation DR-PRO RACK 19" Rackmount DMX Recorder / Playback Device Image 1
Elation DR-PRO RACK 19" Rackmount DMX Recorder / Playback Device Image 2
Elation DR-PRO RACK 19" Rackmount DMX Recorder / Playback Device
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The DR-PRO RACK from Elation allows you to transfer up to 5 hours of recorded lightshows and play back using either of the playback sequence buttons. Professional trigger and playback functions are available, even by external electrical contacts for use in Multi-media and show installations. Or it can be used as a simple way of recording and playback of your lightshows in clubs, exhibitions and home installations.

Elation Pro Lighting DR-PRO-RACK DMX Recorder Features:

  • Standard DMX-512 (1990), DMX Recorder / Playback device
  • Up to 8 memories consisting of Static Scenes, Chases or Shows can be recorded and triggered
  • 5 operation modes include Manual control, Real-time trigger, SMPTE/MIDI time code trigger, DMX trigger and DMX monitor
  • Over 5 hours recording time
  • 4 record modes include, Manual, Auto, Semi-Auto and Smart
  • Individual cue Fade/Hold time setting for every Chase step
  • Password lock function
  • 3pin XLR DMX male/female connectors
  • SD card port & USB port for data memory and firmware upgrade
  • 3pin XLR, SMPTE port
  • 5pin standard MIDI input
  • Ports available for external contact trigger
  • 128x160 character color LCD display

Elation Pro Lighting DR-PRO-RACK DMX Recorder Specifications:

  • 9~12VDC, 500mA Min. Power supply (Included)
  • 3-pin XLR connectors for DMX in/out, USB port for communicating with PC, 3pin SMPTE input, 5pin MIDI input and 12 phoenix connectors for dry contact closure triggering
  • IP20 (Ingress Protection)
  • Operating Temperature: -10°C to +50°C -20
  • Storage Temperature: -20°C to +70°C
  • Dimensions (LxWxH): 19” x 3.07” x 1.73” (482 x 78 x 44 mm)
  • Weight: 2.7lbs. (1.2kg)
