Product Overview

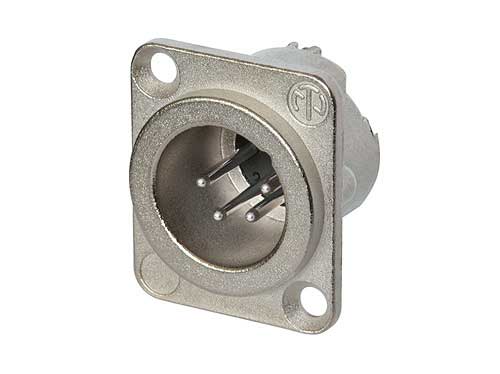

Neutrik's NC4MD-LX is a 4-pole male receptacle, solder cups, nickel housing, silver contacts.
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Features:
- All-metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Specifications
- Electrical Specifications:
- Capacitance between contacts: = 7 pF
- Contact resistance: = 5 mO (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GO (initial)
- Rated current per contact: 10 A
- Rated voltage: 50 V
- Mechanical Specifications:
- Insertion force: = 20 N
- Withdrawal force: = 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 1.5 mm²
- Wiresize: max. 16 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Chassis shape: D
- Material Specifications:
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn35Pb2)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Stahl Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Environmental Specifications:
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
