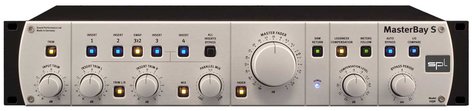

SPL Sound Performance Lab MASTERBAY-S
S-Class Patchbay

OUR PART #  MASTERBAY-S

Our Price: $2,499.00
List Price: $2,699.00
You save 7%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The new MasterBay S can manage up to four stereo processors comfortably and its fascinating possibilities allow you to get the best results out of your equipment.

When it comes to mastering, a patchbay is not always enough: even for experienced users a simple comparison of different processors or processing paths can become a headache.

The classic patch bay allows you to easily route signals between different signal sources, processors and other audio gear. All connected devices can be tapped at any point in the signal path by simply making the adequate connections in the patch bay.

This can be very practical when working in projects, since you can set up the audio path according to a specific production without having to change anything until the production is finished. That is frequently the case during mixdown.

However, in the mastering stage the needs of an engineer often go well beyond this. Even a direct A/B comparison between two processors or two different signal paths can prove unfeasible with a patch bay. Not to mention loudness compensation after processing, comfortable fine adjustment of input and output levels or an adequate level control to dynamically fade the signal.

The MasterBayS fulfills all of these requirements and goes even a couple of decisive steps forward. Its comfortable yet flexible switching and control functions make it easier to achieve the best results with the available equipment. Innovative and pragmatic functions, conceived to simplify and improve the comparison process, give you a qualitative edge in mastering applications, while saving you time. Using the MasterBayS as central interface for all your hardware gear reduces to the minimum the actual conversions taking place, regardless of the number of processors used. Due to its high engineering quality, the MasterBayS not only pampers the signal but it also becomes a key element in the audio production stage where it is put to use.

Features:

  • Four switchable inserts
  • Parallel Mix function
  • Automatic A/B comparison with freely selectable intervals
  • Loudness compensation
  • Trim potentiometers for all input and output levels
  • Big level knob for dynamic fading
  • Always reduces signal conversion to the minimum
  • All audio signals are controlled directly by reliable relais switches and potentiometers - no sound-compromising DACs or VCAs

Specifications:

Inputs & Outputs
-Differential amplifier, elektronically balanced/transformerless
-Sockets - Main Input: XLR, Insert Return 1-4: XLR, DAW Return: XLR
-Nominal input level: +4dBu

Input Impedance
-Main Input: ca. 20kOhm unbalanced, ca. 40kOhm balanced
-Insert 1 Return: ca. 20kOhm unbalanced, ca. 40kOhm balanced;
Data above applies if inserts 2 and 3 are not active. If inserts 2 and 3 are active, input impedance depends from the units connected to inserts 2 and/or 3.
-Insert 2 Return: ca. 20kOhm unbalanced, ca. 40kOhm balanced
Data above applies if insert 3 is not active. If insert 3 is active, input impedance depends from the units connected to insert 3.
-Insert 3 Return: ca. 20kOhm unbalanced, ca. 40kOhm balanced
-Insert 4 Return: ca. 20kOhm unbalanced, ca. 40kOhm balanced
-DAW Return: ca. 20kOhm unbalanced, ca. 40kOhm balanced

Output Impedance
-Rec. Output: ca. 75 Ohm unbalanced, ca. 150 Ohm balanced
-Insert 1 Send: ca. 75 Ohm unbalanced, ca. 150 Ohm balanced
-Insert 2 Send: ca. 75 Ohm unbalanced, ca. 150 Ohm balanced
Data above applies if insert 1 is not active. If insert 1 is active, input impedance depends from the units connected to insert 1.
-Insert 3 Send: ca. 75 Ohm unbalanced, ca. 150 Ohm balanced
Data above applies if inserts 1 and 2 are not active. If inserts 1 and 2 are active, input impedance depends from the units connected to inserts 1 and/or 2.
-Insert 4 Send: ca. 75 Ohm unbalanced, ca. 150 Ohm balanced
Data above applies if insert 4 is active or all inserts are not active.
-Monitor Output: ca. 75 Ohm unbalanced, ca. 150 Ohm balanced
-Metering Output: ca. 10 Ohm unbalanced; ca. 20 Ohm balanced

Volume Control Ranges
-Input Trim: -6dB to +6dB
-Insert Trim: -6dB to +6dB
-Master Fader: -80 dB to +7 dB
-Compensation Level: -12 dB to 0dB

Measurements
-Max. input level: 23,0 dBu
-Max. output level: 23,0 dBu
-Frequency Range: 10 Hz-100kHz, -3dB: <10 Hz – 200 kHz
-CMR - Main Input: >70 dB, DAW Return: >70 dB, (@1 kHz, 0 dBu input level, unity gain)
-THD&N - Rec. Output: 0,0015%, Monitor Output: 0,0015%, (1 kHz, +4dBu input level, unity gain)
-S/N ratio (A-weighted) - Rec. Output: < -99,0 dB, Monitor Output < -98,0 dB Crosstalk L/R (@ 1 kHz) <98,0 dB
-Dynamic range (not weighted) - Rec. Output: 118,5 dB, Monitor Output: 116,0 dB

Power Supply
-Toroidal transformer; power supply for LEDs & Relays: 12V/6,3 VA, power supply for audio: 2 x 18V/16VA
-Fuses 230 V AC: 50Hz, 1A; 115 V AC: 60 Hz, 2A
-Voltage Selector 115V/230V
-Power Consumption 24W

Dimensions & Weight
-Housing (W x H x D) 482 x 88 x 237 mm
-Depth including potentiometers and sockets: 482 x 88 x 265 mm
-Weight 5,5kg
