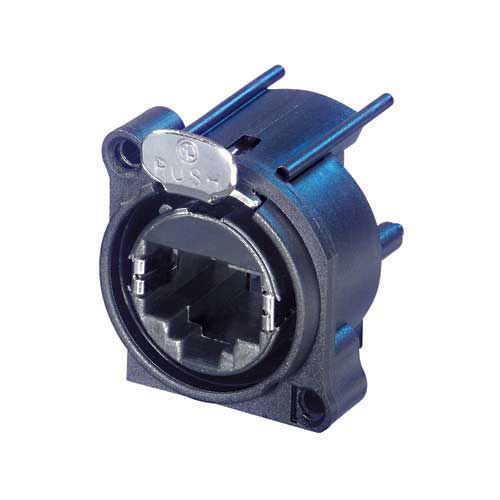

Neutrik NE8FAH
etherCON A-Series Horizontal PCB Mount RJ45 Receptacle with Latch Lock

OUR PART #:  NE8FAH

Neutrik's NE8FAH is a horizonal PCB mount RJ45 receptacle.
Learn More
Sale Price: $3.36
List Price: $5.44
Save up to 40% when you order by quantity!
  • Buy 100: $3.25 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8FAH
Qty:
Similar Products

Neutrik's NE8FAH is a horizonal PCB mount RJ45 receptacle.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications.  The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all-plastic A-Series offers the most space saving and cost effective design.

Neutrik NE8FAH Features:

  • Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Isolated to panel ground
  • Crosstalk compensation at connecting hardware to achieve CAT5e on request
  • A-Series cutout with latch lock

Neutrik NE8FAH Specifications:

Electrical Specifications:

  • Contact resistance: < 10 mO (inner)
  • Dielectric strength: 1 kVdc
  • Frequency range: 1 - 100 MHz
  • Insulation resistance: > 0.5 GO
  • Rated current per contact: 1,5 A
  • Rated voltage: 50 V
  • Transmission performance: Class D
  • Standard compliance: TIA/EIA 586B, IEC11801

Mechanical Specifications:

  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Panel thickness: max. 3 mm 0.12'
  • Wiring: Horizontal PCB mount
  • Locking device: Latch lock
  • Mounting direction: rear
  • Chassis shape: A

Material Specifications:

  • Contact plating: 0.2 µm Au over Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: PBTP 15 % GR
  • Shell: PBTP 15 % GR

Environmental Specifications:

  • Flammability: UL 94 V-0
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
