Neutrik NP3TT-2

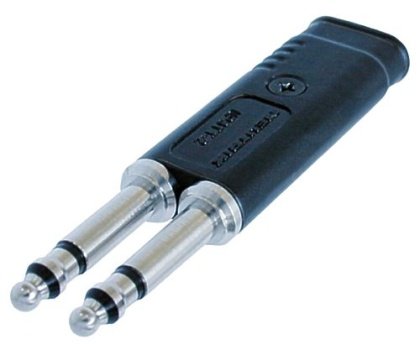

Dual 3-Pole Tiny Telephone Bantam Plug with Nickel Contacts

OUR PART #:  NP3TT-2

Neutrik's NP3TT-2 is a 3-pole, dual, 4.4 mm (0.173") tiny telefone bantam plug with solder termination for T+R, hex crimp of S, black plastic housing, and nickel contacts.
Learn More
Sale Price: $8.99
List Price: $15.30
You save 41%!
Write the first review.

Related Products

Neutrik's NP3TT-2 is a 3-pole, dual, 4.4 mm (0.173") tiny telefone bantam plug with solder termination for T+R, hex crimp of S, black plastic housing, and nickel contacts.

Features:

  • Designed for pro audio applications
  • Robust egonomic design - long-lasting and depenable
  • Standard HEX crimp cable clamp for shield termination and cable retention

Electrical Specifications:

  • Contact resistance: depends on mating connector mO (inner)
  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 2 GO (initial)
  • Rated current per contact: depends on mating connector A
  • Rated voltage: 50 V

Mechanical Specifications:

  • Cable O.D.: 4 - 4.8 mm
  • Crimp Mass: 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
  • Lifetime: > 1000 mating cycles
  • Wiresize: 0,25 mm²
  • Wiresize: 24 AWG
  • Wiring: Solder contacts

Material Specifications:

  • Bushing: Polyacetal (POM) + PU
  • Contact plating: 2 µm Ni (Su)
  • Contacts: Bronze (CuSn6) (Tip)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Polyamide (6 30% GR) (black)

Environmental Specifications:

  • Standard compliance: MIL-P-642/13
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -20 °C to +65 °C
