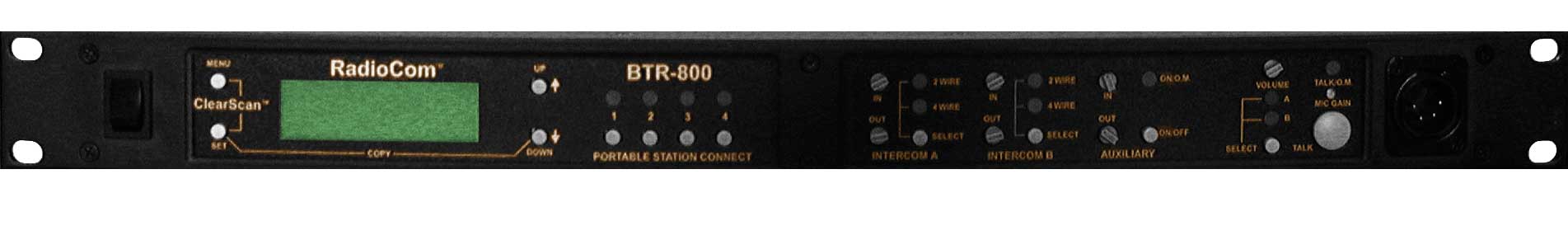

RTS BTR800-RTS-4PIN UHF Radiocom Base, 4pin Female

The Telex RadioCom BTR-800 UHF-synthesized wireless intercom systems offer the ultimate in reliable, high-performance, high fidelity full-duplex communications. The BTR-800 system includes the BTR-800 frequency-agile base station, working with up to four TR-800 or TR-825 frequency-agile beltpacks. The BTR-800 base station provides full-duplex communications with the beltpacks.

The BTR system incorporates two audio channel operation, permitting the beltpack operator to choose between two separate audio channels of communications, with the base station tracking the beltpack selection. This allows the user the flexibility to create a party line and a private line within the same beltpack.

The BTR-800 system is perfectly suited for stand-alone operation and can interface with Telex Audiocom, RTS Two-Wire Intercom, Clear-Com as well as RTS Digital Matrix Intercom systems and other four-wire communications systems. In addition to the external intercom systems interfaces listed above, the system provides connections for auxiliary balanced audio input and output, as well as wireless talk-around (WTA) and stage announce (SA) features.

The Telex RadioCom BTR series has been designed for reliable, efficient operation. Operating in the 470 to 740 MHz range,the units operate reliably at line-of-sight distances of 1,000 feet. With available antenna systems, from Telex RadioCom, the effective operating range can be extended. The high-efficiency beltpacks provide up to 12 hours of uninterrupted operation using standard alkaline batteries.

Features:

• Frequency-Agile Base Station & Beltpacks
• Backlit Base Station LCD
• ClearScan Function
• Full-Duplex Operation
• Compatible with Audiocom, RTS TW, Matrix, Clear-Com, and other wired intercom types
• Two Channels of Intercom Audio
• WTA (Wireless Talk About) Beltpack Control
• SA (Stage Announce) Beltpack Control
• Relay contract closure on the base when the SA button is pressed
• Convenient IEC power connector on the base station
• Comes with rack ears for easy rack mounting

Specifications:

• RF Frequency Range 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands
• Power Requirements 100-240 VAC, 50-60 Hz, IEC receptacle
• Temperature Range -4°F to 130°F (-20°C to 55°C)
• TX Antenna ½ Wave (supplied), TNC Male Connector
• RX Antenna ½ Wave (supplied), TNC Male Connector
• FCC ID B5DM514
• Frequency Response 300 Hz-8 kHz
• 4-Wire Input and Output Level Adjustable (2 Vrms typical)
• Telex RadioCom Intercom Input/Output Level Adjustable (1 Vrms typical), Line Impedance 300O
• RTS Intercom Input/Output Level Adjustable (0.775 Vrms typical), Line Impedance 200O
• Clear-Com Intercom Input/Output Level Adjustable (1 Vrms typical), Line Impedance 200O
• Auxiliary Input Adjustable (2 Vrms typical)
• Auxiliary Output Adjustable (2 Vrms typical into 600O)
• Stage Announce Output Internally Adjustable (2 Vrms typical at rated deviation into 600O)
• Stage Announce Relay Dry contact, rated at 1 Amp, 24V Max
• Microphone Input Sensitivity 9 mV
• Local Headset Output: 40 mW output into 600O (1% Distortion)
• Dimensions/Weight:
  • 19”W x 1.72”H x 14”D (48.3cm x 4.4cm x 35.6cm),
  • 7 lbs 2 oz (3.24 kg)
