Product Overview

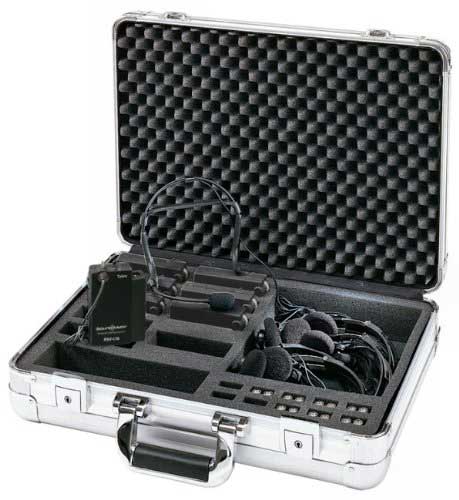

The Soundmate SMP-400 is a portable, battery operated, VHF wireless personal monitoring system packed into a professional carrying case with a foam-padded interior. The system offers ease of operation, clarity of sound, and a 300' operating range.
The SMP-400 system consists of the PST-170 transmitter, which operates on one of 17 selectable frequencies, 4 17-channel, frequency agile SR-400 portable receivers, with companion HED-2 collapsible headphones, and the HM-2 headworn microphone, which features a discreet, lightweight, behind-the-head headband. The case and ten AA batteries are also part of the package.
The SMP-400 is designed as a low cost alternative solution for bus and museum tours, house of worship or theatrical assistive listening applications, and conferencing situations involving multi-client, multi-user translation needs.
Features:
- 17-channel, frequency-agile operation for receivers, 17 selectable frequencies available for transmitter
- Portable wireless personal monitoring/assistive listening system for churches, museum tours, conferencing, and educational applications
- 300' operating range
- Backlit LCD for transmitter, receiver
- E.D.R.(Enhanced Dynamic Range)compander circuitry for transmitter and receiver for clearer, more consistent output
- Lightweight, collapsible folding headsets
- Comfortable, discreet behind-the-head headband for microphone
- Large, professional carrying case with padded foam interior and custom compartments
- Convenient AA battery operation with 20 hr. battery life for receiver
Specifications:
- System
- RF Carrier Frequency Range: 72.1 - 75.4 MHz
- Selectable Channels: 17
- Compatible Channels: 17
- Operating Range: 300' (91 m)
- Signal-to-Noise Ratio:
- Normal: 58 dB
- EDR Enabled: 77 dB
- Frequency Response: 100 Hz - 10 kHz
- PST-170 Transmitter
- RF Output Power: 80K uV/m @ 3m
- Frequency Selection: Top Panel Set, Switch buttons
- Frequency Indicators: LED display, channel letters
- Antenna: Permanently attached trailing wire
- Audio Input Connectors:
- 1 x 1/8" Stereo/Mono Mini Jack
- 1 x TA4M Mini XLR Jack
- Power Requirements:
- 2 x AA Batteries
- 2 x Nickel-Cadmium Batteries
- Limiting: Built-In, Fixed Threshold
- SR-400 Receiver
- Frequency Selection: 17 Channels
- Antenna: Omnidirectional in earphone/headphone cord
- Power Requirements:
- 2 x AA Batteries
- 2 x NiMH batteries
- 2 x Nickel-Cadmium batteries
- Battery Life:
- Alkaline: 30 hrs.
- 2 x NiMH: 20 hrs.
- Nickel-Cadmium: 10 hrs.
- Battery Status Indicator
- Equalization
- Personal Mix Control:
- Top Panel On/Off/Volume Knob
- Treble Boost Control Button
- Frequency Set Button
- Limiting: Built-In, Fixed Threshold
- HM-2 Microphone
- Transducer Type: Cardioid Dynamic
- Frequency Response: 100 Hz - 10 kHz
- Cable Length: 3' (1 m)
- Connector: TA4M
