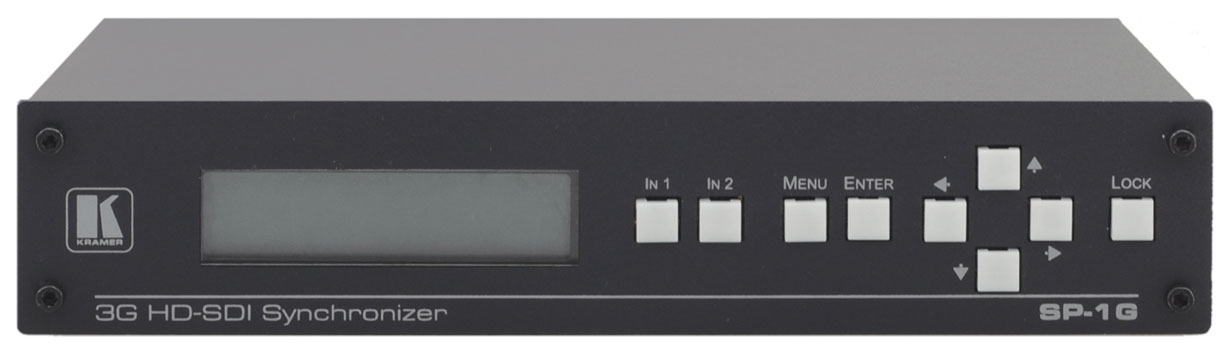

Kramer SP-1G
3G HD-SDI Frame Buffer/Synchronizer

OUR PART #:  SP-1G

The SP-1G is a frame buffer/synchronizer for digital video signals up to 3G HD-SDI.
Learn More
Our Price: $1,800.00
List Price: $2,250.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer SP-1G
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The SP-1G is a frame buffer/synchronizer for digital video signals up to 3G HD-SDI. The unit switches and synchronizes one of two video channels with either the dedicated digital or analog genlock input.

Features:

  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M) with automatic standard detection.
  • Audio Embedder/De-embedder - De-embeds and re-embeds audio during synchronization. Handles 16 channels simultaneously.
  • Built-in Signal Generator - For video and audio testing.
  • Switching Functions - Clean Switch video and Soft Switch audio.
  • Flexible Control - Front panel buttons and RS-232.
  • LCD Display - A 2-line, 16 character per line status display.
  • Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with an optional RK-1 adapter.

Specifications:

  • Inputs: 2 SD/HD/3G HD-SDI, 1 genlock 75? on BNC connectors.
  • Outputs: 2 SD/HD/3G HD-SDI, 1 genlock 75? on BNC connectors.
  • Controls: 9 front panel buttons, RS-232.
  • Power Consumption: 5V DC, 1.13A.
  • Indicators: LCD display, 5 input and genlock LEDs.
  • Dimensions: 21.5cm x 16.2cm x 4.4cm (8.5" x 6.4" x 1.7") W, D, H.
  • Weight: 0.95kg (2.1lbs).
  • Accessories: Power supply.
  • Options: RK-1 19” rack mount.
