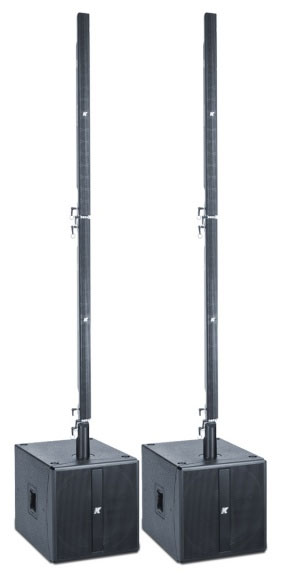

K-Array KR202
800W Ultra-Light Powered Stereo System

OUR PART #:  KR202

KR202 features a pair of KMT18 (18”) subs each with 2 channels of 1,000 Watts matched to two KK102 Mid-High arrays.
Learn More

Call for price! Not available online.
List Price: $15,172.50

Similar Products

KR202 features a pair of KMT18 (18”) subs each with 2 channels of 1,000 Watts matched to two KK102 Mid-High arrays. A coupling assembly allows the speakers to be mounted side-by-side, giving the ability to vary the vertical dispersion pattern for narrow to wide coverage.  It features two channels of class D amplification, housed in the sub-woofer.  The rear panel provides input for a balanced line signal, a balanced microphone signal with phantom power, and digital signals in AES/EBU protocol, also on an XLR for ease of cabling. An integrated touch screen provides intuitive managing and editing of powerful DSP controlling: Input and output levels, internally generated test signal, In/Out routing, subwoofer delay (up to 12 ms.), speakon output to the Mid-H element with delay (up to 12 ms.), and overall system delay (up to 330 ms.)

All DSP functions, including EQ can be controlled with remote managing software via USB or RS485, again, conveniently on a standard XLR.  There are 40 different DSP presets, specifically made by K-array to optimize the systems’ performance for the variety of device configuration available. In addition the user can also create, save, and store his/her own personal presets on the module. The unique four-corner port configuration gives symmetrical back loading to the sub speaker for extended bass response with very low distortion. This also gives incredible structural strength to the cabinet despite its light weight. Pocket handles in the sub and an M20 thread mount position for attaching mid-high speakers, with a variety of mounting and rigging hardware options make the latest additions to the K-array Redline Series very versatile in almost any application and in every type of venue.

Features:

  • Unique performance-to-size ratio
  • High power 130 dB continuos, 136 dB peak
  • Fitted with integral handles
  • Line array emission wavefront
  • DSP on-board with dedicated presets
  • Ultra fast set-up and dismantling system
  • Analog and digital AES-EBU inputs
  • RS485 and USB connectivity for remote controlst any application and inevery type of venue.

Applications:

  • Theatre
  • Club
  • Churches
  • Front fill and under-balcony fill
  • Portable and installed AV systems
  • Stage and AV studio monitoring
  • A/V Systems
  • Cinema and special effects

Specifications:

KR202

(specifications for one side system)2 x KK102 + 1 x KMT18

KK102

KMT18

Acoustics

Speaker power handling

400 W (AES)

800 W (AES)

Max power

800 W 1

1400 W 1

Impedance

selectable (must be set @ 32Ohms)

8Ohms

Frequency range

150 Hz - 20 KHz.

30Hz - 150 Hz +/- 3dB (preset relating)

SPL 1W / 1mt

98 dB 2

99 dB 2

Maximum SPL

124 dB continuous - 130 dB peak

130 dB continuous - 136 dB peak

Coverage

Horizontal

110°

Omni

Vertical

7°- 35° (selectable)

Omni

Crossover

Type

External Crossover required

DSP controlled

Frequency

High pass @150 Hz, 24 dB/oct suggested minimum

150 Hz

Transducers

Full Range

16 x 2" Neodymium magnet with 0.75" voice coil

1 x 18" Neodymium speakers with 3" voice coil

Selection Switch

Vertical pattern

Spot - Flood

-

Impedence

8Ohms - 32Ohms (must be set @ 32Ohms)

-

Audio Input

Analog Connectors

2 x 4-pin Speakon

2 male + 2 female 3-pin balanced XLR

Digital Connectors

-

1 male + 1 female 3-pin XLR

Audio powered Output

Connector

-

Female Speakon

Wiring

-

Pin1+= CH1+ Pin1= CH1- Pin2+= N.C. Pin2= N.C.

Remote control Input

Connectors

-

1 x male + female XLR parallel / 1 USB B Jack serial converter

Power Input

Connectors

2 x PowerCon IN/OUT

Amplifiers

Type

-

1 modules class D - DSP controlled

Subwoofer power

-

1000 Watt 3 @8Ohms

Satellite power output

-

1000 Watt 3 @8Ohms

Protection

-

Dynamic limiter, over current, over temp, short circuits

AC power

Operating range

-

85 - 130 Vac 60Hz / 190 - 240 Vac 50Hz (Auto Switch)

I. nom

-

5.5 A / 115 Vac - 2.9 A / 230 Vac

Minimum operation voltage

-

85 Vac - 190 Vac

Maximum operation voltage

-

130 Vac - 240 Vac

Max continuos and

burst current

-

6A(>10 sec) - 12A (<1 sec) @ 130 Vac - 240 Vac

10A(>10 sec) - 20A (<1sec) @ 85 Vac - 190Vac

Physical

Dimensions

8.1 x 100 x 5.9 cm (3.19" x 39.4" x 2.32")

46.5 x 47.5 x 61 cm (18.31"x 18.70" x 24.02")

Weight

4.6 Kg (10.14 lbs)

27.6 Kg (60.85 lbs)

Notes for data

1. Maximum RMS applicable power for a musical signal, the reference signal is the one proposed by EIAJ standard.

2. Measured @4 mt then scaled @1 mt

3. Amplifier wattage rating is based on the maximum unclipped burst sine wave RMS voltage that the amplifier will produce into the nominal load impedance.
