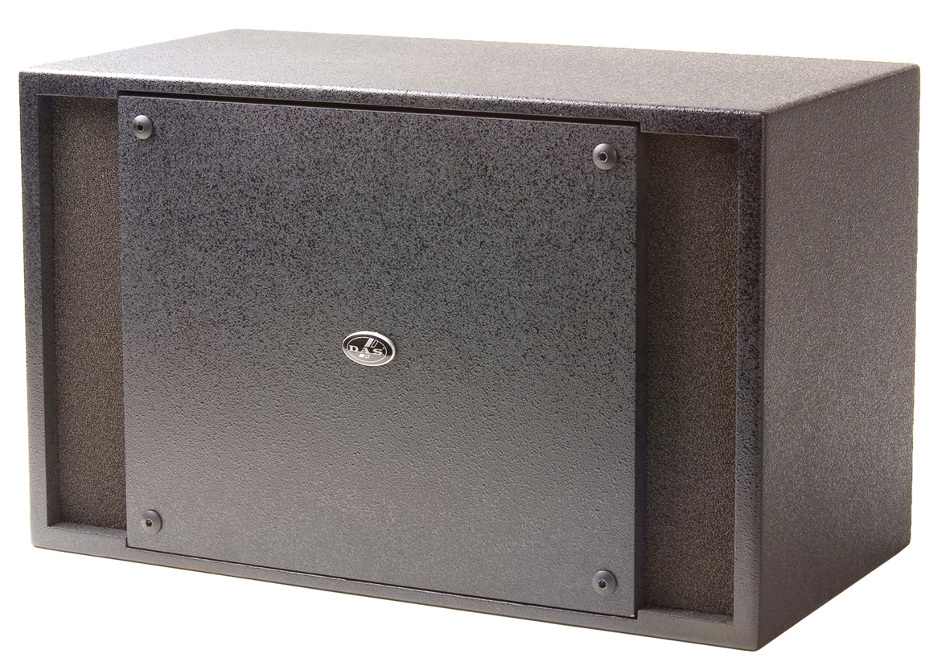

DAS Arco 12 Sub 12" Passive Installation Subwoofer

The D.A.S. Audio Arco 12 Sub employs the 122S dual coil 12" loudspeaker for bass reproduction which delivers low frequency output to 30 Hz. The loudspeaker's dual voice coil configuration allows the cabinet to reproduce both the left and right channel subwoofer frequencies.

The Arco 12 Sub cabinet uses a band-pass configuration. The enclosure is manufactured in MDF and is available in either a black or white paint finish. An optional mounting accessory permits wall mounting. The connector panel provides stereo inputs and high-pass filtered satellite outputs for either Arco 4 or Arco 24 systems.

The Arco 12 Sub is ideal for foreground music and music/paging systems requiring bass reinforcement. Possible applications include restaurants, retail outlets, bars, music cafes, fitness centers, or any other indoor application.

D.A.S. Audio Arco 12 Sub Features:

• Compact subwoofer system for installations
• 12" double coil loudspeaker
• Right/Left inputs
• Filtered right/left outputs
• Wall mount accessory

D.A.S. Audio Arco 12 Sub Specifications:

• Power Handling: 170 W Cont. Program/Coil
• Frequency Range (-10 dB): 30 Hz - 180 Hz
• Nominal Impedance: 8 + 8 Ohms
• Sensitivity: 1 W/1 m 106 dB SPL
• Rated Peak SPL at 1 m: 134 dB
• Internal Crossover:
  • In: 12dB/oct low pass 180 Hz
  • Out: 6 dB/oct high-pass
• Connectors: Spring-Loaded Terminals
• Enclosure Material: MDF
• Color/Finish: Black Paint
• Dimensions (HxWxD): 14.2" x 23.3" x 11.2" (36 x 59.2 x 28.5cm)
• Weight: 30.8 lbs (14 kg)
