Neutrik NBNC75BLP9 75 Ohm BNC Cable Connector with Rear Twist

OUR PART #: NBNC75BLP9 MFR #: NBNC75BLP9

Copied to clipboard

Neutrik's NBNC75BLP9 rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications. ...Read more

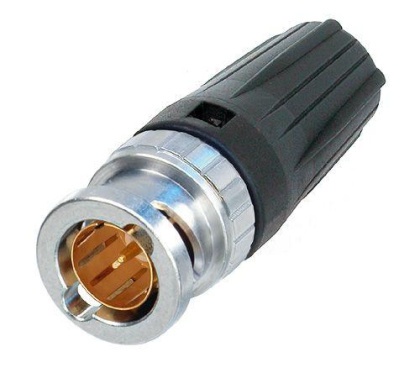

Neutrik NBNC75BLP9 75 Ohm BNC Cable Connector With Rear Twist Image 1
Neutrik NBNC75BLP9 75 Ohm BNC Cable Connector With Rear Twist
Our Price: $3.01
List Price: $3.52
You save 14%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Neutrik's NBNC75BLP9 rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable Cables:

  • Argosy: Image 720
  • Belden: 1505A (ANH), 8241F
  • Canare: L-4CFB
  • CommScope: 5565
  • Draka: 0.8/3.7 AF, 755-801, 755-803, 755-804
  • Gepco: VPM2000
  • Proel: HPC 810
  • Suhner: S0426
  • Sommer: 600-0451, 600-162(F)

Crimp size:

  • Pin: 1.6 mm (square)
  • Shield: 6.47 mm (hex)

Features:

  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 O design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include color-coded boots in 10 standard colors, crimp tool and dies

Electrical Specifications:

  • Electrical Specifications:
    • Contact resistance: = 3 mO (inner) (inner)
    • Comment: = 2
    • Dielectric strength: 1,5 kVdc
    • Impedance: 75 O
    • Insulation resistance: > 5 GO
    • VSWR:
      • = 1.050 / > 32 dB up to 1 GHz
      • = 1.065 / > 30 dB up to 2 GHz
      • = 1.100 / > 26 d
    • Rated voltage: 500 V
  • Mechanical Specifications:
    • Cable O.D.: 6.3 mm
    • Cable retention: > 30 N (Center)
    • Crimp Mass: 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
    • Crimp size: 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
    • Insertion force: < 25 N
    • Lifetime: > 1000 mating cycles
    • Locking device: Bayonett
    • Cable anchoring: Jacket crimping
  • Material Specifications:
    • Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
    • Insert: PTFE
    • Shell: Brass (CuZn39Pb3)
    • Shell plating: Optalloy®
  • Environmental Specifications:
    • Standard compliance IEC 6016908, MIL 348A
    • Temperature range: -30 °C to +85 °C
    • Contact crimpability: Complies with IEC 60803 and IEC 60352-2

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
