Product Overview

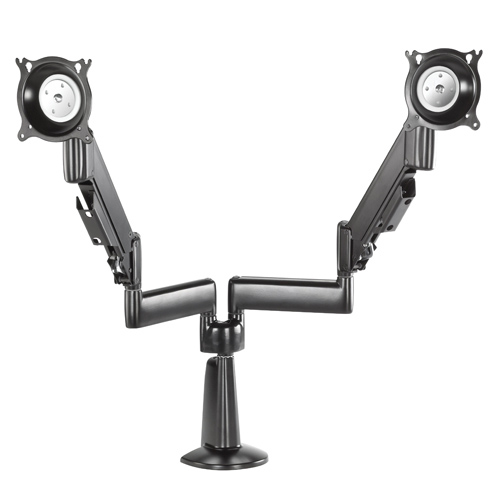

A dual arm mount for small flat panel monitors that provides maximum ergonomic flexibility for viewing multiple monitors.
Chief KCY210B Features:
- Independently position monitors for optimal viewing comfort (sitting and/or standing)
- Centris Technology provides smooth, fingertip tilt in all directions
- Allows independent movement and height adjustment of each monitor for ergonomic alignment and to maximize the possible viewing angles
- Adjustable tension in indiviual pivot points; touchscreen compatible
- Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt
- Clean look with minimal hardware visible from underside of work surface
- Quick, easy cable management
- Ships assembled
- VESA® 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)
Chief KCY210B Specifications:
- Color: Black
- Desktop Thickness Range: 0.5 - 3.5" (13 - 89mm)
- Dynamic Height Adjustment: 13.25
- Grommet Hole Size Range: 0.38 - 3" (10 - 76mm)
- Maximum Extension: 20" (508.mm)
- Minimum Depth: 2.19" (55.6mm)
- Mounting Pattern Compatibility (Universal Versions): 75 x 75mm ,100 x 100mm
- Number of Monitors: 2
- Orientation: Landscape, Portrait
- Overall Dimensions (H x W x D): 12.0" x 10.0" x 4.2" (305 x 254 x 107mm)
- Post-Installation Leveling (Roll): Yes
- Shipping Weight: 22.00 lbs
- Solution Type: Universal
- Tilt: + 15°, - 15°
- TV Width Range: 10 - 32" (254 - 813mm)
- Typical Screen Sizes: 10 - 30"
- Weight Capacity: 5 - 20 lbs (2.3 - 9.1kg)
Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3" (10-76 mm). Weight capacity is per monitor.
