Gefen Inc GTB-HDBT-POL-BLACK
BaseT® Extender for HDMI & Bi-IR with POL

OUR PART #:  GTB-HDBT-POL-BLK

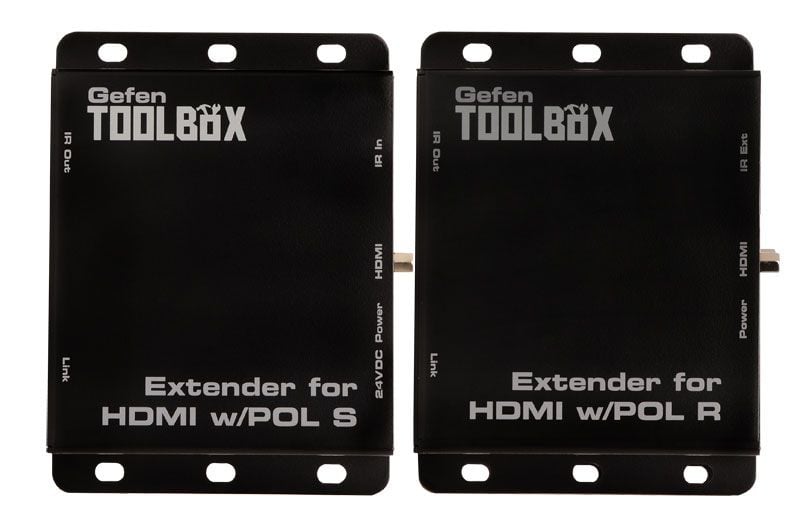

The GefenToolBox Extender for HDMI with POL extends HDMI up to 230 feet (70 meters) using one CAT-6 cable or up to 198 feet (60 meters) using one CAT-5e.
Learn More
Our Price: $369.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc GTB-HDBT-POL-BLACK
Qty:
In Stock

Similar Products

The GefenToolBox Extender for HDMI with POL extends HDMI up to 230 feet (70 meters) using one CAT-6 cable or up to 198 feet (60 meters) using one CAT-5e. This version comes in a black finish. Resolutions up to 1080p Full HD with multichannel digital audio are supported. This product provides Bi-Directional IR extension between the Sender and the Receiver unit, allowing the transfer of IR commands from one remote location to the other.

Bi-Directional IR can be used to control A/V sources placed near the Sender unit and to send IR automation commands to devices placed near the Receiver unit. Gefen POL (Power Over Line) technology powers the Receiver unit using the same CAT-5e or CAT-6 cable that extends the HDMI signal from the Sender unit. This feature eliminates the need for an external power supply at the Receiver unit which helps to simplify installation.

Note:  Shielded (STP) CAT-5e or CAT-6 is recommended. Unshielded (UTP) CAT-5e or CAT-6 may be acceptable depending on cable quality but is not the top choice. Care should always be given to keep these cables away from power lines and other electromagnetic interference sources.

  • POL (Power Over Line) technology from Gefen sends power to the Receiverunit over the same CAT-5e/6 cable that is used for extending the HDMI signal.
  • HDBaseT® technology allows HDMI, IR (Bi-directional), and power to be senton one CAT-5e/6 cable.

Gefen Inc. GTB-HDBT-POL-BLK Includes:

  • (1) Extender for HDMI with POL (Sender Unit) (GTB-HDBT-POLS)
  • (1) Extender for HDMI with POL (Receiver Unit) (GTB-HDBT-POLR)
  • (1) 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)
  • (1) Single Infrared Emitter (GTB-IREMIT)
  • (1) IR Extender with Carrier Frequency (EXT-RMT-EXTIRC)
  • (1) 24V/1A DC Universal Power Supply (EXT-PS24U1AIP)
  • (1) Quick-Start Guide (QSG-GTB-HDBT-POL)

Gefen Inc. GTB-HDBT-POL-BLK Features:

  • Extends HDMI and 3DTV up to 230 feet (70 meters) over a single CAT-6 or upto 198 ft. (60 m) over a single CAT-5e
  • HDMI Features Supported:
    • Resolutions up to 1080p Full HD
    • HDCP-compliant
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • Bi-Directional IR remote control of devices
  • Gefen POL feature provides power to the Receiver unit over the CAT-5e
  • Uses HDBaseT® Technology
  • HDCP-compliant
  • Locking power connector
  • Easy surface mounting
  • Available in Black and White finishes

Gefen Inc. GTB-HDBT-POL-BLK Specifications:

  • Maximum Pixel Clock: 225 MHz
  • Video Input Connector (Sender): (1) HDMI Type A 19-pin, female, locking
  • Video Output Connector (Receiver): (1) HDMI Type A 19-pin, female, locking
  • Link Connectors (Sender/Receiver): (1) RJ-45, shielded
  • Power/HDCP Indicator LED: Bi-Color: Blue/Amber
  • IR Extender Port (Receiver): 3.5mm mini-stereo jack
  • IR Out Port (Sender / Receiver): 3.5mm mini-mono jack
  • IR In port (Sender): 3.5mm mini-mono jack
  • Power Supply: (1) 24V DC, locking
  • Power Consumption: 24W (max.)
  • Dimensions (W x H x D): 4.3" x 1" x 3.2" (110mm x 26mm x 80mm)
  • Shipping Weight: 4 lbs. (1.8 kg.)
