Innovox Audio SL-2.1RH-WHT Two-Way Horizontal-Mount Speaker, Dual 4", Precision Ribbon HF Driver

The Innovox Audio SL-2.1RH is a horizontal-mount version of the SL-2.1R. This slim profile 2-way loudspeaker is designed to be surface-mounted and disappear into the architectural surroundings. Its precision ribbon HF driver and two 4” long-excursion LF drivers resolve complex audio program with detail and clarity that does not seem possible from such a small package. This version comes with a white finish, but black and custom colors are also available.

The addition of an available SBC-110 ceiling mounted sub-woofer extends low frequency response to 34 Hz and increases maximum system SPL.

Applications:

• Sound for Video Presentation
• Home Theater Center Channel
• Under-Balcony Fill
• Stair-Riser Fill (with adapter kit)
• Choir-Rail Foldback / Fill

Innovox Audio SL-2.1RH-BLK Features:

• Slim profile (only 2” deep by 4” wide)
• 120° H x 90° V coverage
• Employs precision ribbon HF driver
• Blends into architectural environment
• Easily integrated into architectural casework with optional millwork adapter kit

Innovox Audio SL-2.1RH-BLK Specifications:

• System Configuration: Low profile 2-way
• Components & Loading: (2) 4" long-excursion LF drivers, (1) 3" ribbon HF driver
• High-Pass Filter: Built-in 1st order @ 120 Hz
• Enclosure Type: Sealed enclosure, very low profile
• Enclosure Material: Steel chassis with composite end caps
• Finish: Black or White (custom colors available)
• Connectors: Dual binding head screws
• Suspension Hardware: Mounting brackets included
• Grille: Integral, fabric wrapped
• Frequency Response: 120 – 20,000 Hz +/-3 dB
• Sensitivity: 92 dB @ 2.83 volts / 1M
• Impedance: 6 ohms
• Power Handling: 90 W long term program
• Maximum Output: 108 dB long term / 114 dB peak @ 1 meter
• Nominal Coverage Angles: 120° H x 90° V
• Dimensions (HxWxD): 4.56" x 18.00" x 2.06" (116 mm x 457 mm x 52 mm)
• Net Weight: 7.0 lbs / 3.2 kg
• Shipping Weight: 8.0 lbs / 3.6 kg

Note:

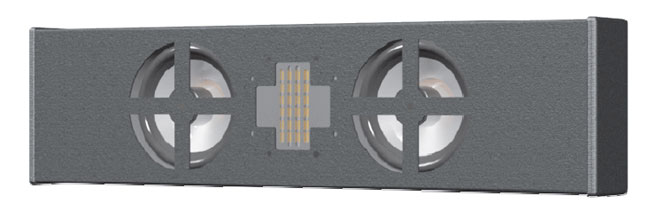

Image shown above is for illustrative purposes only; actual product comes in White.
