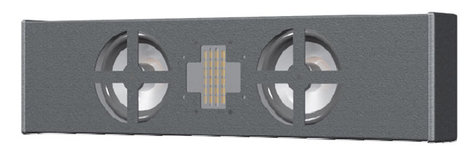

Innovox Audio SL-2.1RH-BLK
Two-Way Horizontal-Mount Speaker, Dual 4", Precision Ribbon HF Driver

OUR PART #:  SL-2.1RH-BLK

The Innovox Audio SL-2.1RH is a horizontal-mount version of the SL-2.1R.
Learn More

Call for price! Not available online.

Similar Products

The Innovox Audio SL-2.1RH is a horizontal-mount version of the SL-2.1R. This slim profile 2-way loudspeaker is designed to be surface-mounted and disappear into the architectural surroundings. Its precision ribbon HF driver and two 4” long-excursion LF drivers resolve complex audio program with detail and clarity that does not seem possible from such a small package. This version comes with a black finish, but white and custom colors are also available.

The addition of an available SBC-110 ceiling mounted sub-woofer extends low frequency response to 34 Hz and increases maximum system SPL.

Innovox Audio SL-2.1RH-BLK Features:

  • Slim profile (only 2” deep by 4” wide)
  • 120° H x 90° V coverage
  • Employs precision ribbon HF driver
  • Blends into architectural environment
  • Easily integrated into architectural casework with optional millworkadapter kit

Applications:

  • Sound for Video Presentation
  • Home Theater Center Channel
  • Under-Balcony Fill
  • Stair-Riser Fill (with adapter kit)
  • Choir-Rail Foldback / Fill

Innovox Audio SL-2.1RH-BLK Specifications:

  • System Configuration:  Low profile 2-way
  • Components & Loading:  (2) 4" long-excursion LF drivers, (1) 3" ribbon HF driver
  • High-Pass Filter:  Built-in 1st order @ 120 Hz
  • Enclosure Type:  Sealed enclosure, very low profile
  • Enclosure Material:  Steel chassis with composite end caps
  • Finish:  Black or White (custom colors available)
  • Connectors:  Dual binding head screws
  • Suspension Hardware:  Mounting brackets included
  • Grille:  Integral, fabric wrapped
  • Frequency Response:  120 – 20,000 Hz +/-3 dB
  • Sensitivity:  92 dB @ 2.83 volts / 1M
  • Impedance:  6 ohms
  • Power Handling:  90 W long term program
  • Maximum Output:  108 dB long term / 114 dB peak @ 1 meter
  • Nominal Coverage Angles:  120° H x 90° V
  • Dimensions (HxWxD):  4.56" x  18.00" x 2.06" (116 mm x 457 mm x 52 mm)
  • Net Weight:  7.0 lbs / 3.2 kg
  • Shipping Weight:  8.0 lbs / 3.6 kg
