Telex FMR500H/L-A Handheld & Bodypack Combo Wireless System, A-Band

OUR PART #: FMR500H/L-A MFR #: F.01U.118.385

Copied to clipboard

The FMR-500H/C Handheld System includes: FMR-500 Agile UHF receiver, HT-500D handheld transmitter with the EV RE410 condenser mic, WT-500 bodypack transmitter... ...Read more

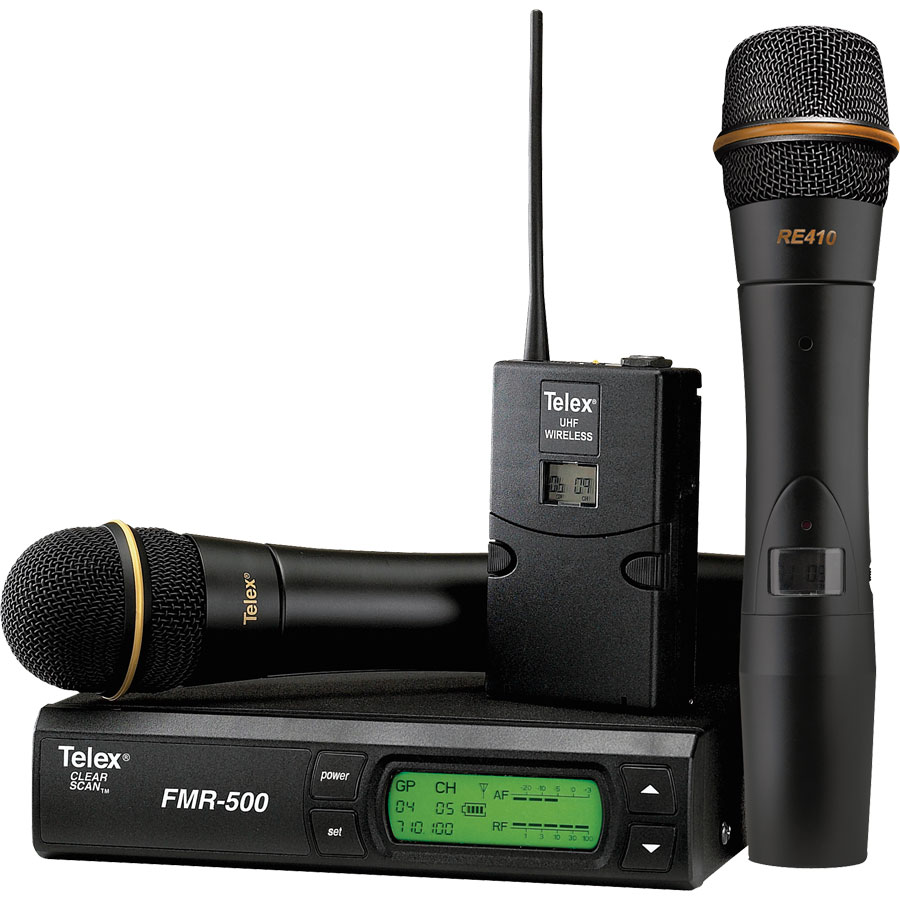

Telex FMR500H/L-A Handheld & Bodypack Combo Wireless System, A-Band Image 1
Telex FMR500H/L-A Handheld & Bodypack Combo Wireless System, A-Band
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The FMR-500H/C Handheld System includes: FMR-500 Agile UHF receiver, HT-500D handheld transmitter with the EV RE410 condenser mic, WT-500 bodypack transmitter, ELM-22 micromini omni lav mic, rack mount hardware for single/dual mount, 2 1/4 wave antennas, and wall pack power supply. The Telex FMR-500 is a frequency agile UHF wireless system ideal for fixed-install, rentals, corporate AV, churches, and more. Features include 1122-Channel Frequency Agile channels with ClearscanT auto channel selection allows quick setup, transmitter matching, Digital Posi-PhaseT Diversity receiver technology and new channel selection if RF conditions change. Digital Posi-PhaseT Diversity receiver technology provides clear, drop-out free audio. Front panel Battery Level, RF and audio meters with XLR Balanced Mic or Adjustable Line Level output plus 1/4" Unbalanced Line output on back panel.

The FMR-500 brings professional features and performance to the small and medium sized wireless microphone installs that are so popular today. One touch Auto ClearScan™ selects the clearest channel in the clearest group of compatible channels in just seconds with the push of one button.

Telex FMR500H/L-A Features:

  • Up to 10 systems can operate simultaneously from the pre-set groups of channels in one operating band. Groups of 16 coordinated channels between the two bands are also pre-set.
  • Advanced ClearScan™ and one touch Auto ClearScan automatic group and channel selections, for quick and easy system setup.
  • Completely programmable in 25kHz steps across 28MHz for 1112 possible frequencies.
  • Backlit receiver LCD display shows the Group/Channel, Frequency, transmitter battery status, diversity operation, and RF and Audio level meters.
  • Balanced XLR audio output for Microphone or Line level signals and a 1/4" line level jack to match any application.
  • Fourth generation Posi-Phase™ diversity and advanced audio circuits provide maximum range and professional sound quality.
  • Includes single and dual rack mount hardware with front mount antenna cables.
  • “Smart” battery circuit means there is no way to put the battery in wrong.
  • Tone Code plus Amplitude squelch with one button on/off.

Telex FMR500H/L-A Specifications:

  • Receiver Type: Synthesized PLL
  • Frequency Range (RF): A Band 648 – 676 MHz / B Band 696 – 724 MHz
  • Number of Channels: 1112 possible frequencies
    • Programmable in 25 kHz steps
  • Modulation: +/- 40 kHz
  • Diversity: Digital Posi-Phase™ True Diversity
  • RF Sensitivity: < 1.0 mV for 12 dB SINAD
  • Image Rejection: > 60dB
  • Squelch: Tone Code plus Amplitude
  • Ultimate Quieting > 100dB
  • FCC Certification: Approved under Part 15
  • Power Requirements: 12 V AC/DC 300mA
  • Operating Temperature: 20° to 120°F (-7° to 49°C)
  • Dimensions (HxWxD): 1.72” x 7.5” x 5.9”
  • AUDIO PARAMETERS:
    • Frequency Response 50 – 15kHz +/- 2dB
    • Balanced Output (max @ 40kHz deviation)
      • Mic Position -10dBV
      • Line Position adjustable 10mV - 2V RMS
    • Unbalanced Output adjustable 10mV - 1V RMS
    • Distortion < 1.0%, 0.5% typical (ref 1kHz, 40kHz deviation)
    • Signal-to-Noise Ratio >100dB A Weighted
    • Dynamic Range >100dB

NOTE:

The image shown is for illustrative purposes only. Actual products included in this package may be different than depicted. See details bellow.
