Telex FMR500H/D-G
Handheld Wirelesss System with the EV 767a, G-Band


Our Price: $731.00
Write the first review.
Telex FMR500H/D-G
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

NOTE: The image shown is for illustrative puposes only.  Actual products included in this package may be different than depicted.  See details bellow.

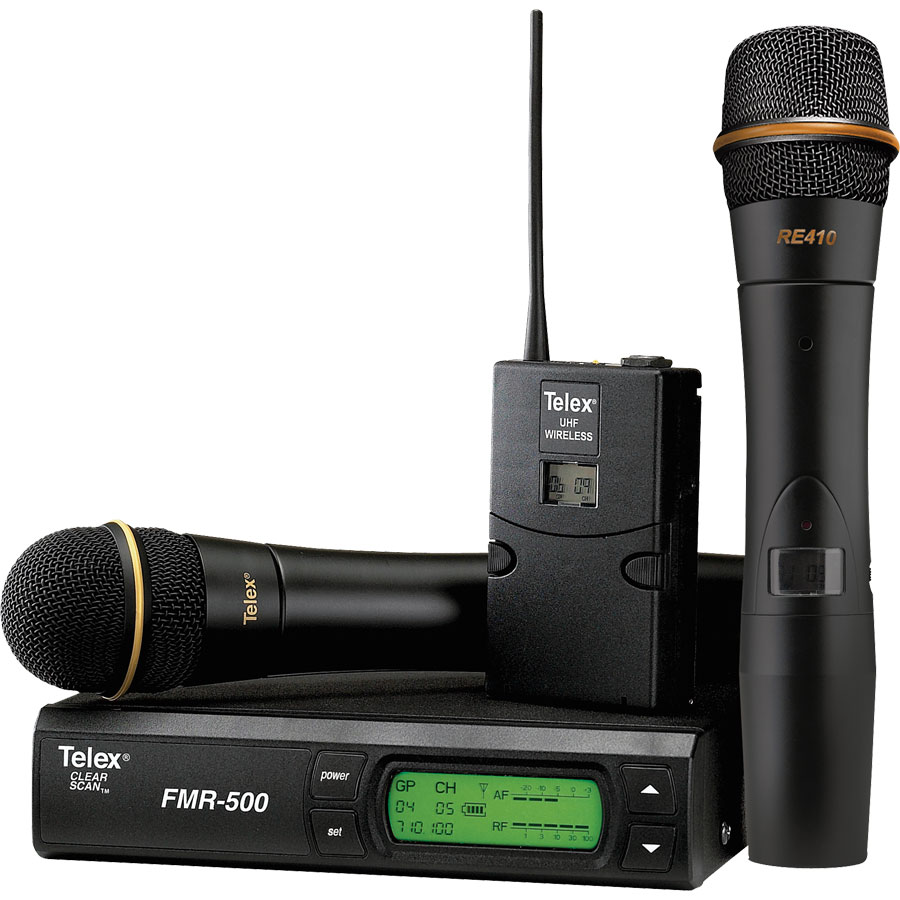

FMR-500H/C Handheld System includes: FMR-500 Agile UHF receiver, HT-500D handheld transmitter with the EV 767a NDYM mic, rack mount hardware for single/dual mount, 2 1/4 wave antennas, and wall pack power supply.The Telex FMR-500 is a frequency agile UHF wireless system ideal for fixed-install, rentals, corporate AV, churches, and more. Features include 1122-Channel Frequency Agile channels with ClearscanT auto channel selection allows quick setup, transmitter matching, Digital Posi-PhaseT Diversity receiver technology and new channel selection if RF conditions change. Digital Posi-PhaseT Diversity receiver technology provides clear, drop-out free audio. Front panel Battery Level, RF and audio meters with XLR Balanced Mic or Adjustable Line Level output plus 1/4" Unbalanced Line output on back panel.

The FMR-500 brings professional features and performance to the small and medium sized wireless microphone installs that are so popular today. One touch Auto ClearScan™ selects the clearest channel in the clearest group of compatible channels in just seconds with the push of one button.


  • Up to 10 systems can operate simultaneously from the pre-set groups of channels in one operating band. Groups of 16 coordinated channels between the two bands are also pre-set.
  • Advanced ClearScan™ and one touch Auto ClearScan automatic group and channel selections, for quick and easy system setup.
  • Completely programmable in 25kHz steps across 28MHz for 1112 possible frequencies.
  • Backlit receiver LCD display shows the Group/Channel, Frequency, transmitter battery status, diversity operation, and RF and Audio level meters.
  • Balanced XLR audio output for Microphone or Line level signals and a 1/4 inch line level jack to match any application.
  • Fourth generation Posi-Phase™ diversity and advanced audio circuits provide maximum range and professional sound quality.
  • Includes single and dual rack mount hardware with front mount antenna cables.
  • “Smart” battery circuit means there is no way to put the battery in wrong.
  • Tone Code plus Amplitude squelch with one button on/off.


  • Receiver Type: Synthesized PLL
  • Frequency Range (RF): A Band 648 – 676 MHz / B Band 696 – 724 MHz
  • Number of Channels: 1112 possible frequencies
    Programmable in 25 kHz steps
  • Modulation: +/- 40 kHz
  • Diversity: Digital Posi-Phase™ True Diversity
  • RF Sensitivity: < 1.0 mV for 12 dB SINAD
  • Image Rejection: > 60dB
  • Squelch: Tone Code plus Amplitude
  • Ultimate Quieting > 100dB
  • FCC Certification: Approved under Part 15
  • Power Requirements: 12 V AC/DC 300mA
  • Operating Temperature: -7° to 49° C (20° to 120° F)
  • Dimensions: 1.72” H x 7.5” W x 5.9” D


  • Frequency Response 50 – 15kHz +/- 2dB
  • Balanced Output (max @ 40kHz deviation)
    Mic Position -10dBV
    Line Position adjustable 10mV - 2V RMS
  • Unbalanced Output adjustable 10mV - 1V RMS
  • Distortion <1.0%, 0.5% typical (ref 1kHz, 40kHz deviation)
  • Signal-to-Noise Ratio >100dB A Weighted
  • Dynamic Range >100dB

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
