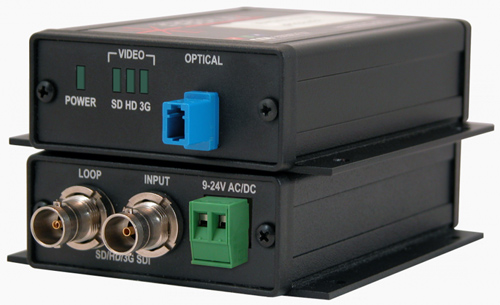

Communications Specialtie CSI-3350-B1550S
3G/HD/SD-SDI to Fiber Transmitter

OUR PART #:  CSI-3350-B15505

The Fiberlink 3350 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259...
Learn More
Our Price: $1,378.26
List Price: $1,412.87
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Communications Specialtie CSI-3350-B1550S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Fiberlink 3350 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The 3350 transmitter features a re-clocked and equalized SDI loop through and the 3351 receiver features two re-clocked and equalized SDI outputs.

The 3350 Series is compliant with SMPTE 297-2006 and has the ability to operate seamlessly with Fiberlink Matrix and other SMPTE 297-2006 fiber optic compliant devices.

The 3350 Series is immune to pathological signals over the entire budget link and operating temperature range.

Available in a small footprint box, it is ideal for broadcast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!

Communications Specialite CSI-3350-B15505 Features:

  • Signal is equalized and re-clocked prior to fiberoptic transmission
  • Transmitter features a re-clocked SDI loop through
  • Receiver features two re-clocked SDI outputs
  • Designed for fiber optic interoperability with otherSMPTE 297-2006 fiber optic compliant devices up to 2.97 Gbps
  • Immunity to pathological patterns over entire linkbudget and operating temperature range
  • Compliant with SMPTE 259M-2006, 292-2006, 424M-2006,297-2006
  • Supports transmission of SMPTE 305M-2005, 310M-2004,344M-2000, DVB-ASI
  • Supports both Single Mode and Multimode (62.5u &50u) fiber types
  • Supports 3G/HD/SD-SDI inputs with or without embeddedaudio and data
  • 14 dB Optical Link Budget @ 2.97 Gbps
  • Wide operating temperature range: -10º C to +50º C
  • Card version compatible with the Fiberlink® 6000A RackCard Cage
  • Designed and Manufactured in the USA by CSI

Communications Specialite CSI-3350-B15505 Specifications:

Serial Video BNC Input

  • Number of Inputs: 1
  • Data Rate Range: 19.4 Mbps to 2.97 Gbps
  • Supported Standards:
    • SMPTE 259M
    • 292
    • 297-2006
    • 424M-2006
    • 305M
    • 310M
    • 344M
    • DVB-ASI
  • Re-clocked Data Rates:
    • 270 Mbps (SMPTE 259M,DVB-ASI-270)
    • 1.485 Gbps (SMPTE 292)
    • 2.97 Gbps (SMPTE 424M-2006)
  • Equalization:
    • Automatic up to 100m of Belden 1694A at3.0 Gbps
    • 200m at 1.485 Gbps and 350m at 270 Mbps
  • Return Loss: >10dB up to 2.97 Gbps

Serial Video BNC Loop-Through Output

  • Number of Loop-Throughs: 1
  • Signal Level: 800mV ± 10%
  • DC Offset: 0V ± 0.5V
  • Rise/Fall Time:
    • < 135 ps at 2.97 Gbps per SMPTE424M-2006
    • < 270 ps at 1.485 Gbps per SMPTE292
    • 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
  • Overshoot < 10% of amplitude
  • Timing Jitter:
    • < 0.2 UI at 270 Mbps
    • < 1.0 UI at 1.485 Gbps
    • < 2.0 UI at 2.97 Gbps with color bar signal
  • Alignment Jitter:
    • < 0.2 UI at 270 Mbps
    • < 0.2 UI at 1.485 Gbps
    • < 0.3 UI at 2.97 Gbps with color bar signal
  • Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps

Optical Output

  • SMPTE 297-2006 Labeling: L-PC-ABCD-1310
  • Connector: LC receptacle, PC polish or ST
  • Wavelength: 1310nm (nominal)
  • Emmiter Type: FP Laser
  • Output Power (nominal):
    • -3.5 dBm at 270 Mbps
    • -3.5 dBm at1.485 Gbps
    • -3.5 dBm at 2.97 Gbps
  • Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps
