Communications Specialtie 3351-B7S 3G/HD/SD-SDI Fiber Optic Receiver

Communication Specialties, Inc.'s Fiberlink 3351-B7S, part of CSI's Fiberlink 3350 series, allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The 3350 transmitter features a re-clocked and equalized SDI loop through and the 3351 receiver features two re-clocked and equalized SDI outputs.

The 3350 Series is compliant with SMPTE 297-2006 and has the ability to operate seamlessly with Fiberlink Matrix and other SMPTE 297-2006 fiber optic compliant devices.

The 3350 Series is immune to pathological signals over the entire budget link and operating temperature range.

This is the small footprint box version with an ST-type optical output connector, and is ideal for broadcast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!

Features:

• Signal is equalized and re-clocked prior to fiber optic transmission
• Transmitter features a re-clocked SDI loop through
• Receiver features two re-clocked SDI outputs
• Designed for fiber optic interoperability with other SMPTE 297-2006 fiber optic compliant devices up to 2.97 Gbps
• Immunity to pathological patterns over entire link budget and operating temperature range
• Compliant with SMPTE 259M-2006, 292-2006, 424M-2006,297-2006
• Supports transmission of SMPTE 305M-2005, 310M-2004,344M-2000, DVB-ASI
• Supports both Single Mode and Multimode (62.5u &50u) fiber types
• Supports 3G/HD/SD-SDI inputs with or without embedded audio and data
• 14 dB Optical Link Budget @ 2.97 Gbps
• Wide operating temperature range: -10º C to +50º C
• Designed and Manufactured in the USA by CSI

Specifications:

• Fiber Optic Input
  • SMPTE 297-2006 Labeling: PC-ABCD-1310-1550
  • Connector: ST receptacle
  • Wavelength: 1100 - 1620 nm
  • Minimum Input Sensitivity
    • -17 dBm at 2.97 Gbps
    • -20 dBm at 1.485 Gbps
    • -21 dBm at 270 Mbps
  • Maximum Input Power 0 dBm
• Serial Video BNC Outputs
  • Rise/Fall Time:
    • < 135 ps at 2.97 Gbps per SMPTE424M-2006
    • < 270 ps at 1.485 Gbps per SMPTE 292
    • 0.4 ns to 1.5 ns at 270 Mbps per SMPTE259M
  • Overshoot: < 10% of amplitude
  • Timing Jitter:
    • < 0.2 UI at 270 Mbps
    • < 1.0 UI at 1.485 Gbps
    • < 2.0 UI at2.97 Gbps with color bar signal
  • Alignment Jitter:
    • < 0.2 UI at 270 Mbps
    • < 0.2 UI at 1.485 Gbps
    • < 0.3 UI at 2.97 Gbps with color bar signal
  • Re-clocking:
    • 270 Mbps
    • 1.485Gbps
    • 2.97 Gbps
  • Number of Outputs: 2
  • Signal Level: 800mV ± 10%
  • DC Offset: 0V ± 0.5V
• General Specifications
  • Indicators:
    • Power
    • Data Rate lock(3G, HD, SD/DVB-ASI)
    • Alarm (Card Version Only)
  • Box Version Dimensions:
    • 5.21 x 3.50 x 1.15(in)
    • 133 x 89 x 30 (mm)
  • Weight: 6.9 ounces, 196 grams
  • Slots in 6000A Card Cage 1
  • Power:
    • 9-24 volts, AC or DC
    • 3350: 1.6watts, 5.46 BTU/Hr
    • 3351: 1.4 watts, 4.78 BTU/Hr
  • Operating Temperature -10º C to +50º C

Note

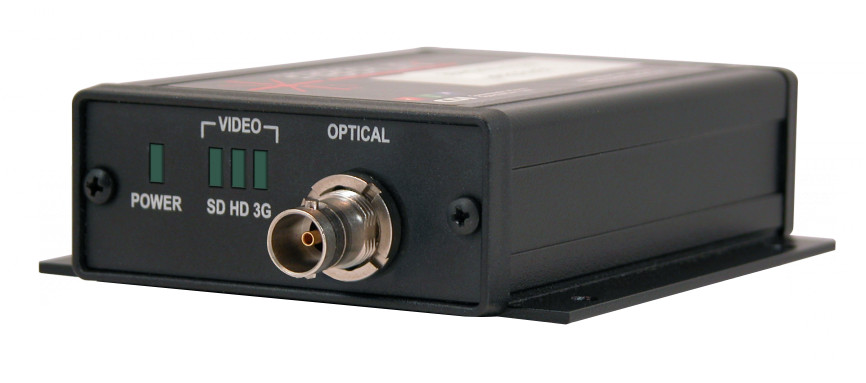

NOTE: Picture shown is for illustrative purposes. Actual item appearance may vary slightly.
