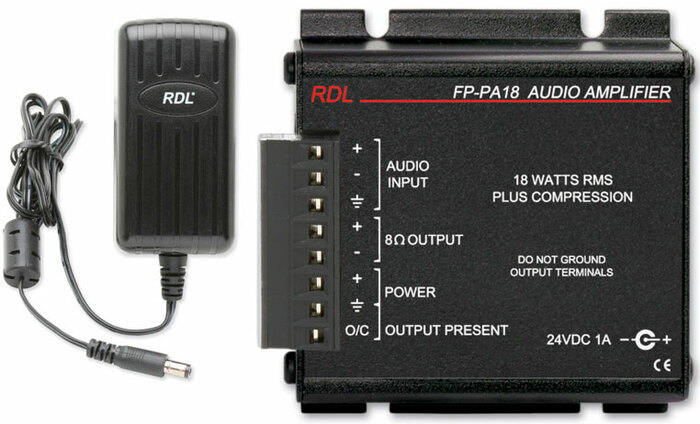

Radio Design Labs FP-PA18
18W, 8 Ohm Mono Audio Amplifier with Power Supply

OUR PART #  FP-PA18

Our Price: $189.94
List Price: $254.09
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Radio Design Labs FP-PA18 is a high efficiency 18 W power amplifier with a line input, 8 ohm output, integral audio compressor and an automatic sleep mode. The FP-PA18 features a balanced line level input that may be connected unbalanced. A gain control located next to the terminal block is designed to be adjusted manually or with a trimming screwdriver. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. The output drives one 8 ohm speaker or multiple speakers connected to present an 8 ohm load to the amplifier.

The FP-PA18 includes an analog compressor/limiter for fidelity audibly superior to conventional class D amplifiers with digital limiting. The input GAIN setting determines whether the limiter alone is used for clipping suppression, or if the full compressor/limiter will be used to substantially increase the average output power beyond that of a standard 18 W amplifier. A red COMPRESSION LED flashes when the limiter is preventing output clipping. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics. If the input level is increased so that the compressor is active, the LED remains dimly lit between peak flashes. The audio is compressed according to three dynamic time constants providing aural transparency while maintaining clean, unclipped amplified audio for input overloads of up to 20 dB. The FP-PA18, with compression, is capable of producing average audio output levels and clarity normally expected from amplifiers with a much higher output power rating.

The FP-PA18 circuits are all designed for low power consumption. In the absence of an audio input, a digital timer is enabled to switch the class D output stage off. When this sleep mode is active, the amplifier module and its included RDL power supply consume less than 1 W of mains power. A control on the end plate sets the sleep mode delay timer to 5, 15 or 25 minutes. The control also permits the installer to bypass the sleep mode to conform to system specifications that require the amplifier to be active at all times. Upon detection of an input signal, the amplifier is nearly inaudibly and instantly restored to full operation within 150 milliseconds.

The output stage includes an audio detector that illuminates the green OUTPUT ACTIVE LED and provides an active open collector output when amplified audio is present at the module output. This output is useful to control other equipment or to verify amplifier operation using high or low frequency low-level test tones. The detector triggers with only 30 mW of output power at 20 Hz or 5 mW of output power at 20 kHz.

A blue POWER LED illuminates when the FP-PA18 is powered from its external 24 Vdc power supply. The power LED is dimly illuminated when the sleep mode disables the amplifier and glows brightly when the amplifier operation is fully enabled. The module is equipped with both thermal and output short-circuit protection. The high-efficiency Class D output stage produces minimal heat for all levels of expected voice or music modulation.

Wherever an ultra-compact, high quality, high efficiency eco-friendly audio power amplifier is needed to provide reliability and unsurpassed versatility, the FP-PA18 is the ideal choice. Use the FP-PA18 individually, or combine it with other RDL products as part of a complete audio/video system.

Radio Design Labs FP-PA18 Features:

  • 18 Watts RMS into 8 Ohms
  • Automatic Energy-Saving Sleep Mode
  • Selectable Sleep Delay: Off, 5, 15, 25 Minutes
  • Input / Output Detachable Terminal Block Connections
  • Line Level Balanced or Unbalanced Input
  • Compressor/Limiter Controls Clipping
  • LED to Indicate Audio Compression Threshold
  • Compressor Produces Maximized Average Output Power
  • Audio Quality Superior to Standard Amplifiers
  • Ultra-compact All Metal Construction
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • PS-24KS Power Supply Included

Radio Design Labs FP-PA18 Specifications:

  • Input: Line level (+4 dBu nominal balanced; -10 dBV nominal unbalanced)
  • Input Impedance: 10 kO balanced bridging; 5 kO unbalanced
  • Gain Adjustment: Single turn audio taper
  • Minimum Input Levels:
    • Balanced: -18 dBu (to cross compressor threshold)
    • Unbalanced: -20 dBV (to cross compressor threshold)
  • Maximum Input Levels:
    • Balanced: +23 dBu
    • Unbalanced: +21 dBV
  • Frequency Response: 20 Hz to 20 kHz (+/- 1 dB)*
  • THD+N: < 0.5% (20 Hz to 20 kHz)*
  • Compressor: Threshold 3 dB below rated output, automatically adjusting attack and release times
  • Noise: < -72 dB (below 18 W RMS, +4 dBu input)
  • CMRR: > 45 dB (50 Hz to 3 kHz)
  • Output Power: 18 W RMS into 8 O
  • Output Circuit: Class D
  • Output Signal Detector Threshold: 30 mW @ 20 Hz; 20 mW @ 30 Hz; 10 mW @ 50Hz; 5 mW @ 65 Hz through 20 kHz
  • Output Signal Detector Output: Open collector, 5 mA
  • Sleep Mode Power Consumption: < 1 W (amplifier and included powersupply)
  • Sleep Mode Delay: 5, 15 or 25 minutes (selectable)
  • Sleep Mode Disable: Selectable
  • Active Mode Delay: < 150 mS after input audio detected
  • Audio Detector Threshold: -50 dBu balanced, -52 dBV unbalanced
  • Ambient Operating Environment: 0° C to 50° C Maximum
  • Indicators (3):
    • Red LED: COMP LED indicates compressor activity
    • Green LED: OUTPUT ACTIVE (controlled by output signal detector)
    • Blue LED: POWER on; Dim: Sleep mode active; Bright: Amplifier active
  • 24 Vdc power supply current: 16 mA (idle), 975 mA (max.),Ground-referenced
  • Power Supply (included): 100 to 240 Vac, 50-60 Hz, 1Amax.; 24 Vdc output to module
  • Dimensions (HxWxL): 1.15" x 3.25" x 3" (2.92 x 8.26 x 7.62 cm)

Radio Design Labs FP-PA18
18W, 8 Ohm Mono Audio Amplifier with Power Supply

OUR PART #  FP-PA18

Product Information:

The Radio Design Labs FP-PA18 is a high efficiency 18 W power amplifier with a line input, 8 ohm output, integral audio compressor and an automatic sleep mode. The FP-PA18 features a balanced line level input that may be connected unbalanced. A gain control located next to the terminal block is designed to be adjusted manually or with a trimming screwdriver. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. The output drives one 8 ohm speaker or multiple speakers connected to present an 8 ohm load to the amplifier.

The FP-PA18 includes an analog compressor/limiter for fidelity audibly superior to conventional class D amplifiers with digital limiting. The input GAIN setting determines whether the limiter alone is used for clipping suppression, or if the full compressor/limiter will be used to substantially increase the average output power beyond that of a standard 18 W amplifier. A red COMPRESSION LED flashes when the limiter is preventing output clipping. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics. If the input level is increased so that the compressor is active, the LED remains dimly lit between peak flashes. The audio is compressed according to three dynamic time constants providing aural transparency while maintaining clean, unclipped amplified audio for input overloads of up to 20 dB. The FP-PA18, with compression, is capable of producing average audio output levels and clarity normally expected from amplifiers with a much higher output power rating.

The FP-PA18 circuits are all designed for low power consumption. In the absence of an audio input, a digital timer is enabled to switch the class D output stage off. When this sleep mode is active, the amplifier module and its included RDL power supply consume less than 1 W of mains power. A control on the end plate sets the sleep mode delay timer to 5, 15 or 25 minutes. The control also permits the installer to bypass the sleep mode to conform to system specifications that require the amplifier to be active at all times. Upon detection of an input signal, the amplifier is nearly inaudibly and instantly restored to full operation within 150 milliseconds.

The output stage includes an audio detector that illuminates the green OUTPUT ACTIVE LED and provides an active open collector output when amplified audio is present at the module output. This output is useful to control other equipment or to verify amplifier operation using high or low frequency low-level test tones. The detector triggers with only 30 mW of output power at 20 Hz or 5 mW of output power at 20 kHz.

A blue POWER LED illuminates when the FP-PA18 is powered from its external 24 Vdc power supply. The power LED is dimly illuminated when the sleep mode disables the amplifier and glows brightly when the amplifier operation is fully enabled. The module is equipped with both thermal and output short-circuit protection. The high-efficiency Class D output stage produces minimal heat for all levels of expected voice or music modulation.

Wherever an ultra-compact, high quality, high efficiency eco-friendly audio power amplifier is needed to provide reliability and unsurpassed versatility, the FP-PA18 is the ideal choice. Use the FP-PA18 individually, or combine it with other RDL products as part of a complete audio/video system.

Radio Design Labs FP-PA18 Features:

  • 18 Watts RMS into 8 Ohms
  • Automatic Energy-Saving Sleep Mode
  • Selectable Sleep Delay: Off, 5, 15, 25 Minutes
  • Input / Output Detachable Terminal Block Connections
  • Line Level Balanced or Unbalanced Input
  • Compressor/Limiter Controls Clipping
  • LED to Indicate Audio Compression Threshold
  • Compressor Produces Maximized Average Output Power
  • Audio Quality Superior to Standard Amplifiers
  • Ultra-compact All Metal Construction
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • PS-24KS Power Supply Included

Radio Design Labs FP-PA18 Specifications:

  • Input: Line level (+4 dBu nominal balanced; -10 dBV nominal unbalanced)
  • Input Impedance: 10 kO balanced bridging; 5 kO unbalanced
  • Gain Adjustment: Single turn audio taper
  • Minimum Input Levels:
    • Balanced: -18 dBu (to cross compressor threshold)
    • Unbalanced: -20 dBV (to cross compressor threshold)
  • Maximum Input Levels:
    • Balanced: +23 dBu
    • Unbalanced: +21 dBV
  • Frequency Response: 20 Hz to 20 kHz (+/- 1 dB)*
  • THD+N: < 0.5% (20 Hz to 20 kHz)*
  • Compressor: Threshold 3 dB below rated output, automatically adjusting attack and release times
  • Noise: < -72 dB (below 18 W RMS, +4 dBu input)
  • CMRR: > 45 dB (50 Hz to 3 kHz)
  • Output Power: 18 W RMS into 8 O
  • Output Circuit: Class D
  • Output Signal Detector Threshold: 30 mW @ 20 Hz; 20 mW @ 30 Hz; 10 mW @ 50Hz; 5 mW @ 65 Hz through 20 kHz
  • Output Signal Detector Output: Open collector, 5 mA
  • Sleep Mode Power Consumption: < 1 W (amplifier and included powersupply)
  • Sleep Mode Delay: 5, 15 or 25 minutes (selectable)
  • Sleep Mode Disable: Selectable
  • Active Mode Delay: < 150 mS after input audio detected
  • Audio Detector Threshold: -50 dBu balanced, -52 dBV unbalanced
  • Ambient Operating Environment: 0° C to 50° C Maximum
  • Indicators (3):
    • Red LED: COMP LED indicates compressor activity
    • Green LED: OUTPUT ACTIVE (controlled by output signal detector)
    • Blue LED: POWER on; Dim: Sleep mode active; Bright: Amplifier active
  • 24 Vdc power supply current: 16 mA (idle), 975 mA (max.),Ground-referenced
  • Power Supply (included): 100 to 240 Vac, 50-60 Hz, 1Amax.; 24 Vdc output to module
  • Dimensions (HxWxL): 1.15" x 3.25" x 3" (2.92 x 8.26 x 7.62 cm)
